Same model may have multiple batches, images only for reference.

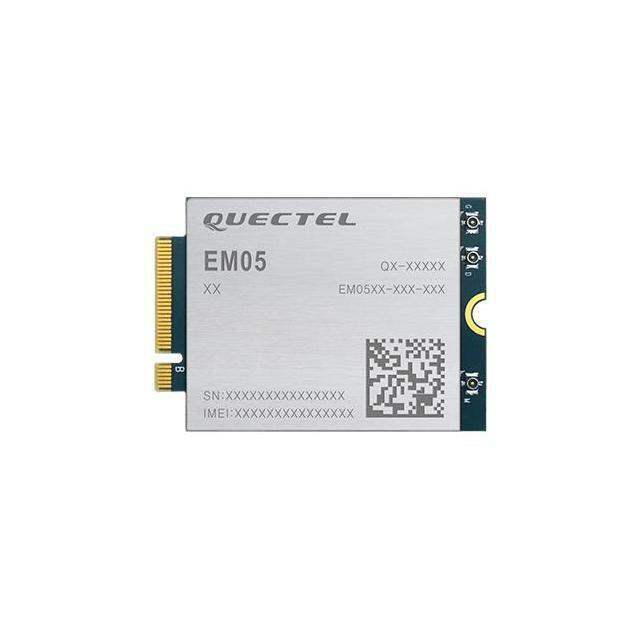

EM05EFA-512-SGAS Quectel
Same model may have multiple batches, images only for reference.

EM05EFA-512-SGAS

Part No EM05EFA-512-SGAS
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELL/NAV CARD EDGE
Datasheet
EM05EFA-512-SGAS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202739-EM05EFA-512-SGAS
Manufacturer Quectel
Category RF and Wireless -RF Transceiver Modules and Modems
Package Tray
Product Status Active
RF Family/Standard Cellular, Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS, HSPA+, LTE, WCDMA
Data Rate 150Mbps
Mounting Type Card Edge
Operating Temperature -30°C ~ 70°C
Package / Case Module
Ultra Librarian 3D Model Ultra Librarian EM05EFA-512-SGAS CAD Model

Description

The Quectel RF Transceiver Module is a versatile and reliable module designed for wireless communication applications.

  • Protocols Supported: BeiDou, Galileo, GLONASS, GPS, GNSS, HSPA+, LTE, and WCDMA
  • Data Transfer Rate: Up to 150Mbps
  • Operating Temperature: -30°C to 70°C
  • Mounting Type: Card Edge
  • Package Type: Module
