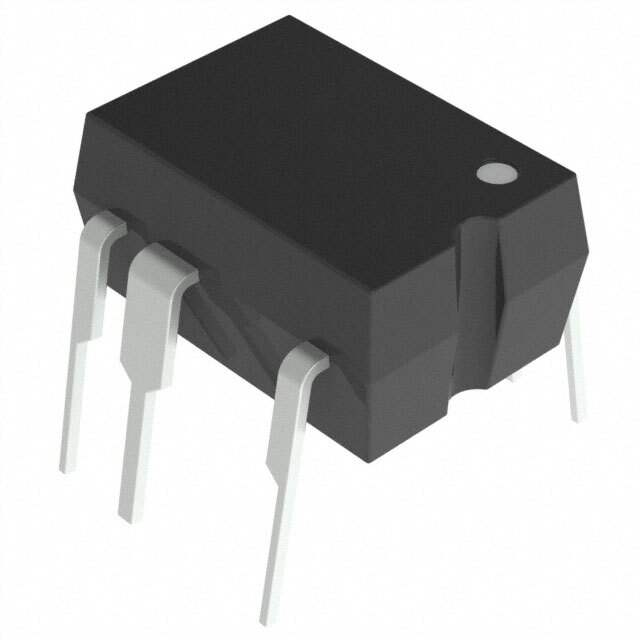

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Sharp Microelectronics
Series PR29MF
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 120 V
Load Current 900 mA
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package 8-DIP
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 656644-PR29MF21NSZF
Ultra Librarian 3D Model Ultra Librarian PR29MF21NSZF CAD Model

Description

The PR29MF21NSZF is a solid-state relay from the PR29MF series.

  • Termination Style: PC pin termination style
  • Output: AC, zero-cross output
  • Circuit Configuration: single-pole, single-throw normally open
  • Load Current: 900mA
  • Voltage Input: 1.2VDC
  • Load Voltage Range: 0V to 120V
  • Mounting: through a hole using an 8-DIP package with 7 leads
  • Manufacturer: Sharp Microelectronics
  • Status: currently obsolete
  • Packaging: tube packaging with a standard package of 1,000 pieces
