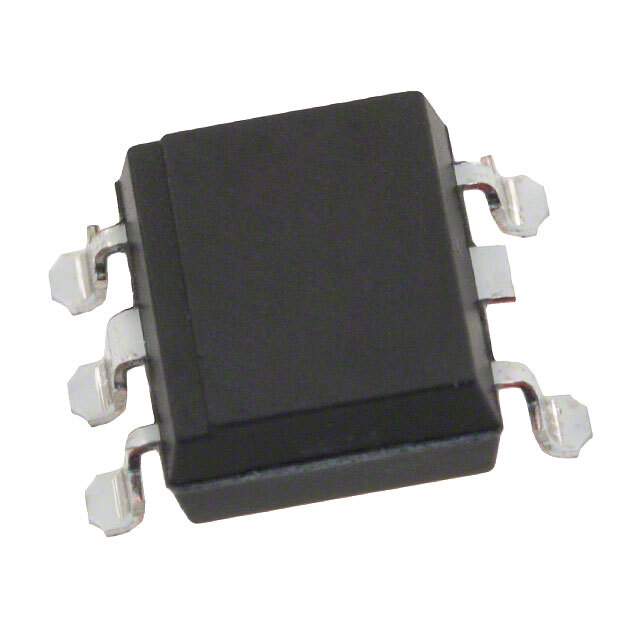

PC3SD21YXPLF Real Image
Same model may have multiple batches, images only for reference.

PC3SD21YXPLF

Part No PC3SD21YXPLF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD
Datasheet
PC3SD21YXPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/μs
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 50μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals CSA, UR, VDE
Win Source Part Number 108779-PC3SD21YXPLF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC3SD21YXPLF CAD Model

Description

It is a balanced supply and demand status electronic component.

  • Component: PC3SD21YXPLF
  • Output Type: triac
  • Forward Voltage: 1.2V
  • Voltage-Off State: 600V
  • Current-On State: 100mA
  • Isolation Voltage: 5000Vrms
  • Package: 6-SMD
  • Compliance: ECCN
  • Operating Temperature Range: -30°C to 100°C
  • Maximum Continuous Forward Current: 50mA
