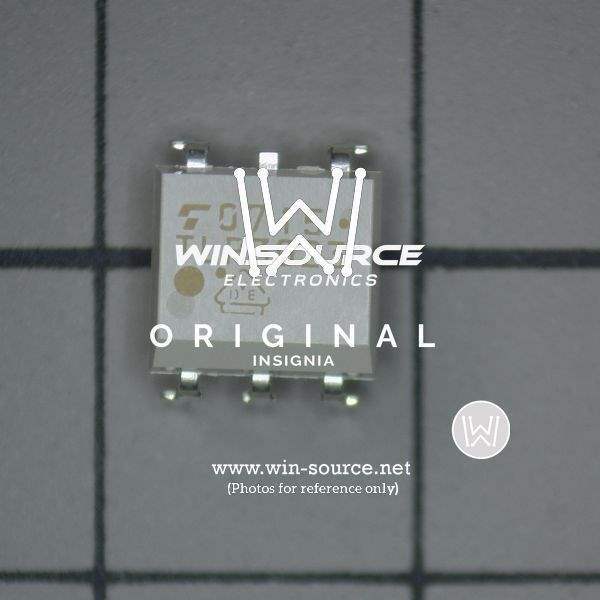

The TLP3023(D4,S,F,T) is a photocoupler from Toshiba Semiconductor and Storage, consisting of a gallium arsenide infrared emitting diode (LED) optically coupled to a silicon photo-triac. It is engineered for applications demanding electrical isolation and AC load switching, offering a safe and dependable interface between low-voltage control circuits and high-voltage AC circuits.

Applications

• Solid State Relays (SSRs): A key component in SSRs, enabling AC loads to be switched without the use of mechanical contacts.
• Industrial Control Systems: Employed in industrial automation equipment for isolated control of AC-powered components.
• Lighting Control Systems: Integrated into lighting systems for dimming and switching AC-powered lights.
• Motor Control: Used in AC motor control circuits to provide electrical isolation between the control circuit and the motor.
• Home Appliances: Incorporated into appliances such as washing machines and air conditioners for switching AC loads securely.

Features

• High Isolation Voltage: Offers a high level of electrical isolation between the input and output circuits.
• Photo-Triac Output: Utilizes a photo-triac for efficient and dependable AC load switching.
• Low Trigger Current: Requires minimal input current to activate the triac, thus minimizing power consumption.
• Compact Package: Designed with a small footprint to conserve space on circuit boards.
• RoHS Compliant: Complies with environmental regulations by being free of hazardous substances.

Benefits

• Enhanced Safety: Protects control circuits from high-voltage AC power.
• Improved Reliability: Solid-state design ensures a longer lifespan compared to mechanical relays.
• Noise Reduction: Isolates circuits, which minimizes electrical noise and interference.
• Simplified Design: Simplifies the design process for AC load control circuits.
• Reduced Maintenance: Solid-state construction reduces the frequency of required maintenance.

Additional Details

The TLP3023(D4,S,F,T) photocoupler functions by emitting infrared light from the LED when it is forward biased. This light then activates the photo-triac, enabling current to flow through the AC load. The (D4,S,F,T) suffix specifies unique testing, packaging, and taping options for this specific variant.

Crucial specifications include the repetitive peak off-state voltage (VDRM), on-state RMS current (IT(RMS)), and isolation voltage (Viso). The device typically operates within a temperature range of -30°C to +100°C. Proper component selection and thermal management are paramount to ensure reliable and safe operation.
