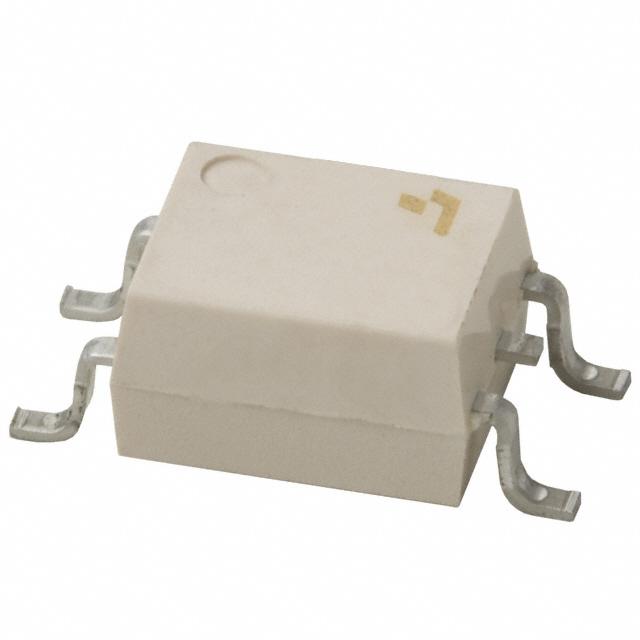

TLP160G(TPR,U,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP160G(TPR,U,F)

Part No TLP160G(TPR,U,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 2.5KV TRIAC 6MFSOP
Datasheet
TLP160G(TPR,U,F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 2500Vrms
Voltage - Off State 400V
Static dV/dt (Min) 200V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 70mA
Current - Hold (Ih) 600μA (Typ)
Turn On Time 30μs
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 6-MFSOP, 4 Lead
Approvals UR
Win Source Part Number 132142-TLP160G(TPR,U,F)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLP160G(TPR,U,F) CAD Model

Description

This electronic component is an Isolator from Toshiba Semiconductor and Storage.

  • Win Source Part Number: 132142-TLP160G(TPR,U,F)
  • Package: Reel - TR
  • Approval: UR
  • Mounting Type: SMD (SMT)
  • Output Type: Triac
  • Forward Voltage: 1.15V
  • Off-State Voltage: 400V
  • Maximum Current: 70mA
  • Number of Channels: 1
  • Isolation Voltage: 2500Vrms
  • Current Hold (Ih): 600μA (Typ)
  • Zero-Crossing Circuit: No
  • Static dV/dt (Min): 200V/μs
  • Maximum Current LED Trigger (Ift): 10mA
  • Turn-On Time: 30μs
  • Supply and Demand Status: Limited
