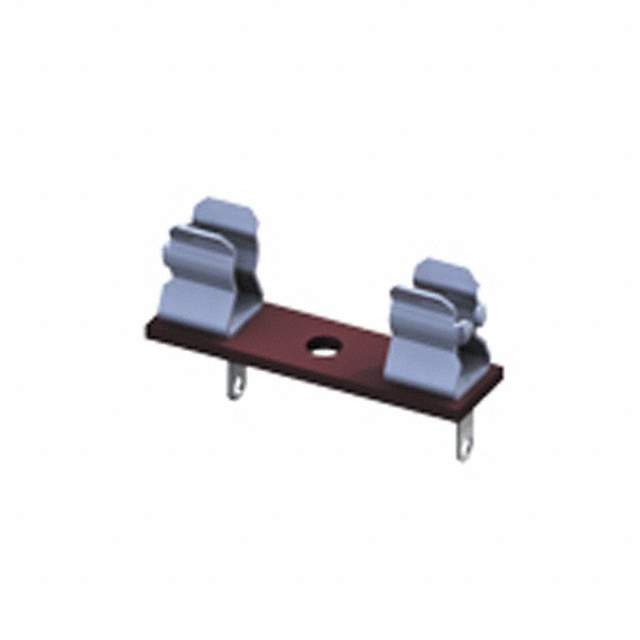

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Keystone Electronics
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 15 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Voltage 500V
Orientation Horizontal
Termination Style Solder Lug
Contact Material Brass
Contact Finish Tin
Approval Agency UL
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1334741-3526
Ultra Librarian 3D Model Ultra Librarian 3526 CAD Model

Description

The 1334741-3526 is a circuit protection fuseholder designed for use with 3AG and 1/4" x 1-1/4" (SFE-20) cartridge fuses.

  • Termination Style: Solder Lug
  • Contact Finish: Tin
  • Material: Brass
  • Voltage: 500V
  • Orientation: Horizontal
  • Mounting: Chassis
  • Current Rating: 15A
  • Approval: UL
  • Status: Active
  • Manufacturer: Keystone Electronics
