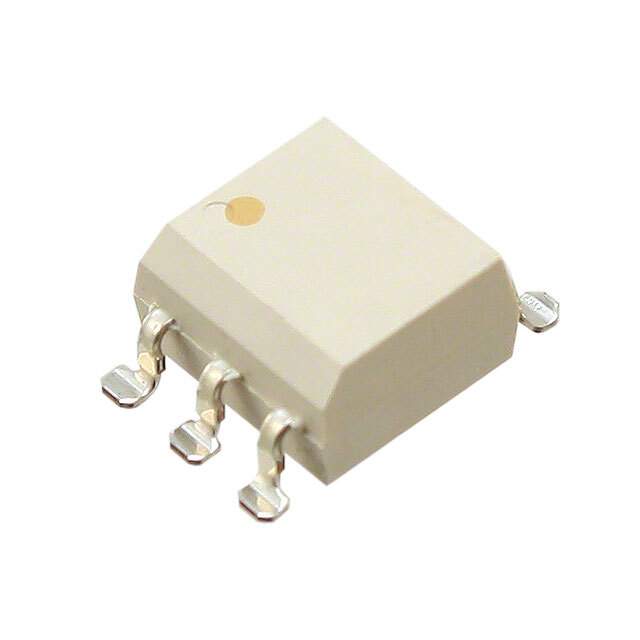

The TLP3023 is a photocoupler manufactured by Toshiba Semiconductor and Storage. It consists of a gallium arsenide infrared emitting diode (LED) optically coupled to a silicon photo-triac. This component is designed for applications requiring electrical isolation and the ability to switch AC loads, providing a safe and reliable interface between low-voltage control circuits and high-voltage AC circuits.

Applications

• Solid State Relays (SSRs): Used extensively in SSRs to switch AC loads without mechanical contacts.
• Industrial Control Systems: Employed in industrial automation equipment for isolated control of AC-powered devices.
• Lighting Control Systems: Integrated into lighting systems for dimming and switching AC-powered lighting fixtures.
• Motor Control: Utilized in AC motor control circuits to provide electrical isolation between the control circuit and the motor.
• Home Appliances: Found in appliances such as washing machines, refrigerators, and air conditioners for AC load switching.

Features

• High Isolation Voltage: Provides a high degree of electrical isolation between the input and output circuits.
• Photo-Triac Output: Employs a photo-triac for efficient and reliable AC load switching.
• Low Trigger Current: Requires a small input current to activate the triac, minimizing power consumption.
• Compact Package: Comes in a small, space-saving package suitable for high-density circuit boards.
• RoHS Compliant: Complies with environmental regulations by being free of hazardous substances.

Benefits

• Enhanced Safety: Protects control circuits from high-voltage AC power.
• Improved Reliability: Solid-state design offers a longer lifespan compared to mechanical relays.
• Noise Reduction: Isolates circuits, minimizing electrical noise interference.
• Simplified Circuit Design: Facilitates easier design of AC load control circuits.
• Reduced Maintenance: Solid-state construction reduces the need for frequent maintenance.

Additional Details

The TLP3023 photocoupler operates by emitting infrared light when the LED is forward biased. This light then activates the photo-triac, allowing current to flow through the AC load. Key specifications include the repetitive peak off-state voltage, on-state RMS current, and isolation voltage. Proper thermal management is crucial for reliable performance.

Important parameters to consider are the LED forward current, triac holding current, and operating temperature range. The device is designed to operate within specific voltage and current limits to ensure its longevity and prevent damage. The TLP3023 provides a robust and efficient solution for AC load switching applications where electrical isolation is necessary.
