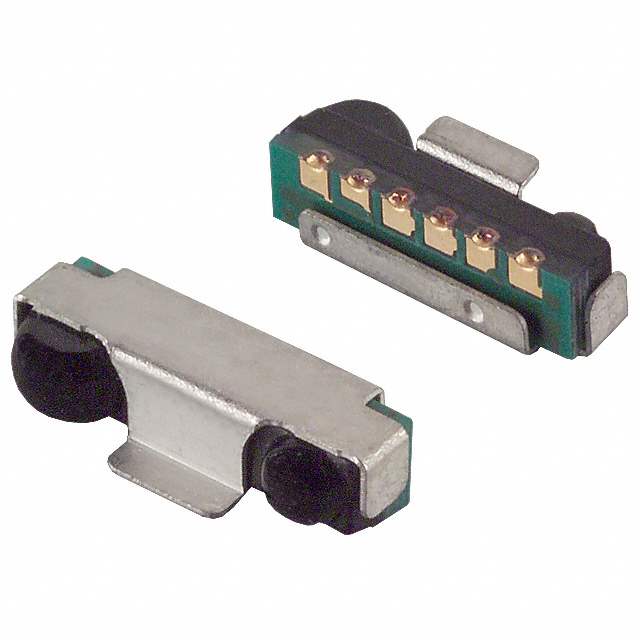

GP2W0116YP0F Real Image
Same model may have multiple batches, images only for reference.

GP2W0116YP0F

Part No GP2W0116YP0F
Manufacturer Sharp Microelectronics
Catalog IrDA Transceiver Modules
Description MODULE IRDA 115.2KBPS 6SMD
Datasheet
GP2W0116YP0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Data Rate 115.2kbs (SIR)
Supply Voltage 2 V to 3.6 V
Idle Current, Typ @ 25°C 90μA
Link Range, Low Power 20cm
Orientation Side View
Temperature Range - Operating -40°C to 85°C
Size 7.2mm x 2.8mm x 1.9mm
Standards IrPHY 1.2
Shutdown Yes
Win Source Part Number 37684-GP2W0116YP0F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GP2W0116YP0F CAD Model

Description

The Sharp Microelectronics GP2W0116YP0F is a side view infrared receiver with the following features:

  • Data Rate: 115.2kbs (SIR)
  • Link Range: 20cm in low power mode
  • Supply Voltage: 2V to 3.6V
  • Idle Current: 90μA at 25°C
  • Compliance: IrPHY 1.2 standards
  • Size: 7.2mm x 2.8mm x 1.9mm
  • Packaging: Reel - TR
  • Status: Obsolete (EOL)
  • Temperature Range: -40°C to 85°C

It is a reliable and efficient infrared receiver, ideal for use in sensors and transducers and is a common-used part with high popularity.
