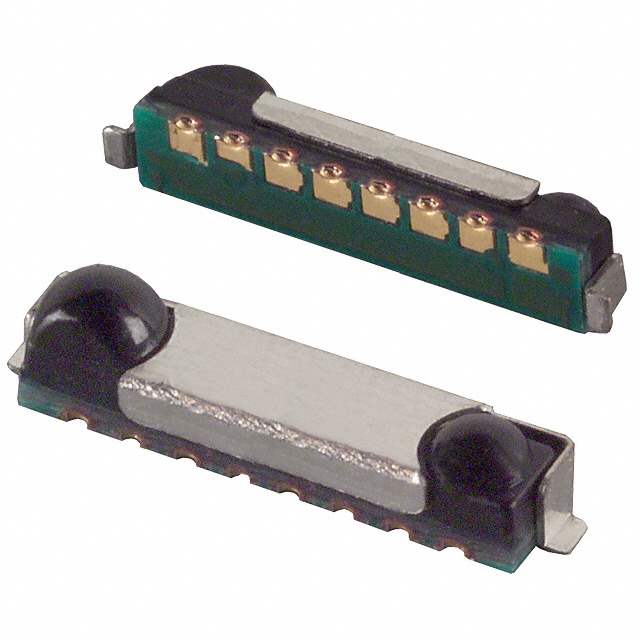

GP2W3270XP0F Real Image
Same model may have multiple batches, images only for reference.

GP2W3270XP0F

Part No GP2W3270XP0F
Manufacturer Sharp Microelectronics
Catalog IrDA Transceiver Modules
Description MODULE IRDA 115.2KBPS 8SMD
Datasheet
GP2W3270XP0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Data Rate 115.2kbs (SIR)
Supply Voltage 2.4 V to 3.6 V
Idle Current, Typ @ 25°C 70μA
Link Range, Low Power 20cm
Orientation Top View
Temperature Range - Operating -40°C to 85°C
Size 8.3mm x 2.1mm x 1.7mm
Standards IrPHY 1.4
Shutdown Yes
Win Source Part Number 016696-GP2W3270XP0F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GP2W3270XP0F CAD Model

Description

The Sharp Microelectronics GP2W3270XP0F is a top view sensor with the following specifications:

  • Data Rate: 115.2kbs (SIR)
  • Size: 8.3mm x 2.1mm x 1.7mm
  • Supply Voltage: 2.4 V to 3.6 V
  • Operating Temperature: -40°C to 85°C
  • Packaging: Reel - TR
  • Status: Obsolete (EOL)
  • Supply/Demand: Balanced
