Same model may have multiple batches, images only for reference.

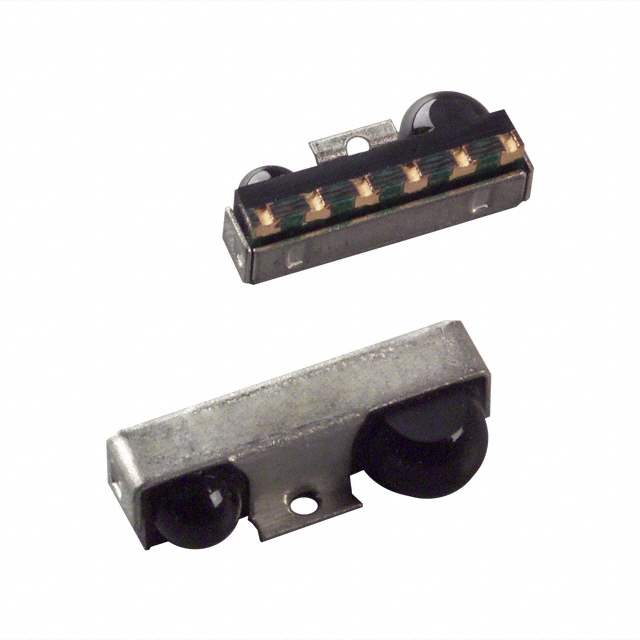

HSDL-3000#007 Real Image
Same model may have multiple batches, images only for reference.

HSDL-3000#007

Part No HSDL-3000#007
Manufacturer Lite-On Inc.
Catalog IrDA Transceiver Modules
Description IRDA MODULE 115.2KBPS 6-SMD
Datasheet
HSDL-3000#007 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Data Rate 115.2kbs (SIR)
Supply Voltage 2.7 V to 5.5 V
Idle Current, Typ @ 25°C 0.02μA
Link Range, Low Power 1.5m
Orientation Side View
Temperature Range - Operating -20°C to 70°C
Size 9.1mm x 3.7mm x 2.7mm
Standards IrPHY 1.3
Shutdown Yes
Win Source Part Number 001698-HSDL-3000#007
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSDL-3000#007 CAD Model

Description

The Lite-On Inc. HSDL-3000#007 is a side view sensor/transducer. The supply and demand status is balanced. It is an obsolete (EOL) part. The sensor/transducer has a data rate of 115.2kbs (SIR) and a size of 9.1mm x 3.7mm x 2.7mm. It is compatible with IrPHY 1.3 standards, has an idle current of 0.02μA, and a link range of 1.5m in low power mode. It can be shut down and has a temperature range of -20°C to 70°C.
