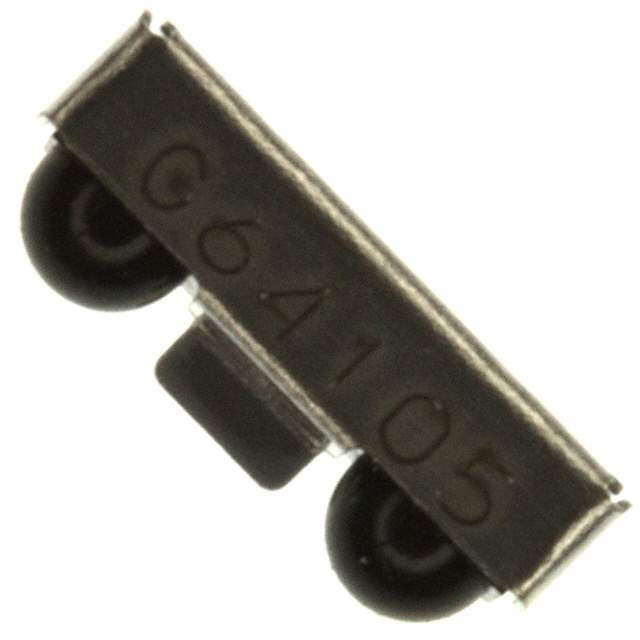

HSDL-3220-021 Real Image
Same model may have multiple batches, images only for reference.

HSDL-3220-021

Part No HSDL-3220-021
Manufacturer Lite-On Inc.
Catalog IrDA Transceiver Modules
Description TRANSCEIVER IRDA 4.0MBIT 8-SMD
Datasheet
HSDL-3220-021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Data Rate 4Mbs (FIR)
Supply Voltage 2.7 V to 3.6 V
Idle Current, Typ @ 25°C 1.8 mA
Link Range, Low Power 1m
Orientation Side View
Temperature Range - Operating -25°C to 70°C
Size 8.0mm x 3.0mm x 2.5mm
Standards IrPHY 1.4
Shutdown Yes
Win Source Part Number 001703-HSDL-3220-021
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSDL-3220-021 CAD Model

Description

The Lite-On Inc. 001703-HSDL-3220-021 is a side view sensor/transducer with a data rate of 4Mbs (FIR) and a size of 8.0mm x 3.0mm x 2.5mm. It operates at a supply voltage of 2.7 V to 3.6 V and complies with IrPHY 1.4 standards. This sensor/transducer has an idle current of 1.8 mA and a link range of 1m in low power mode. It also features a shutdown mode. The Lite-On Inc. 001703-HSDL-3220-021 is obsolete (EOL) and has a medium popularity in the market.
