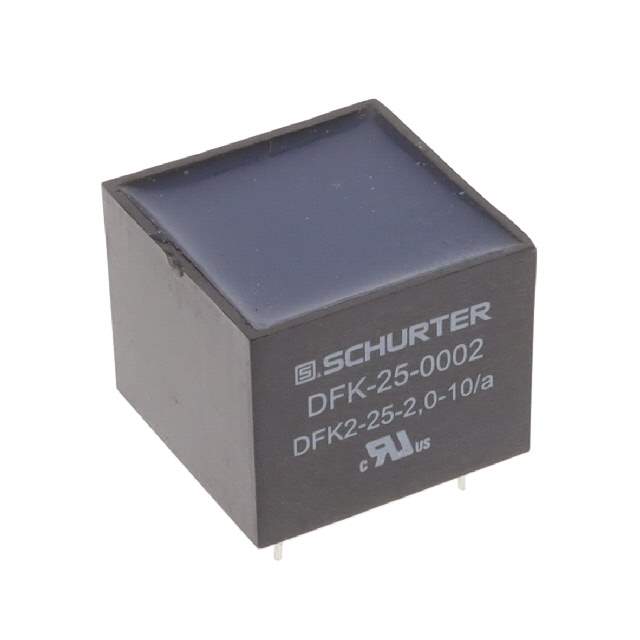

DFK-25-0002 Real Image
Same model may have multiple batches, images only for reference.

DFK-25-0002

Part No DFK-25-0002
Manufacturer Schurter Inc.
Catalog Common Mode Chokes
Description CMC 2A 2LN TH / 2 Line Common Mode Choke Through Hole 2A DCR 250mOhm
Datasheet
DFK-25-0002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr SCHURTER Inc.
Series DFK
Package Bulk
Number of Lines 2
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 250mOhm
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Through Hole
Dimension 0.984" L x 0.984" W (25.00mm x 25.00mm)
Package / Case Nonstandard
Base Product Number DFK-25
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names DFK2-25-2.0-10/A,DFK-25-0002-ND,486-5778
Standard Package 50
Win Source Part Number 1059200-DFK-25-0002
Ultra Librarian 3D Model Ultra Librarian DFK-25-0002 CAD Model

Description

The 1059200-DFK-25-0002 is a common mode choke that falls under the Filters>Common Mode Chokes category.

  • Category: Filters>Common Mode Chokes
  • Series: DFK
  • Maximum Current Rating: 2A
  • DC Resistance: 250mΩ
  • Mounting Type: Through-hole
  • Operating Temperature Range: -25°C to 100°C
