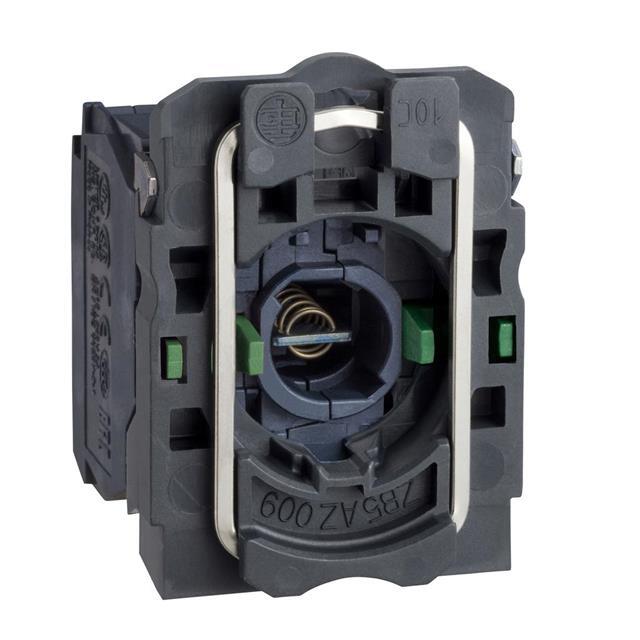

Same model may have multiple batches, images only for reference.
ZB5AW063 Schneider Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ZB5AW063

Part No ZB5AW063
Manufacturer Schneider Electric
Catalog Pushbutton Switches
Description COMPLETE BODY/CONTACT ASSEMBLY A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount, Front
Type Standard, Illuminated
Circuit DPST-NO
Switch Function Off-On
Current Rating (Amps) 6A (AC), 550mA (DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 125 V
Actuator Type Rectangular, Button (Not Included)
Illumination Voltage (Nominal) 250 VAC
Termination Style Screw Terminal
Temperature Range - Operating -40°C ~ 70°C
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1562634-ZB5AW063
Ultra Librarian 3D Model Ultra Librarian ZB5AW063 CAD Model

Description
