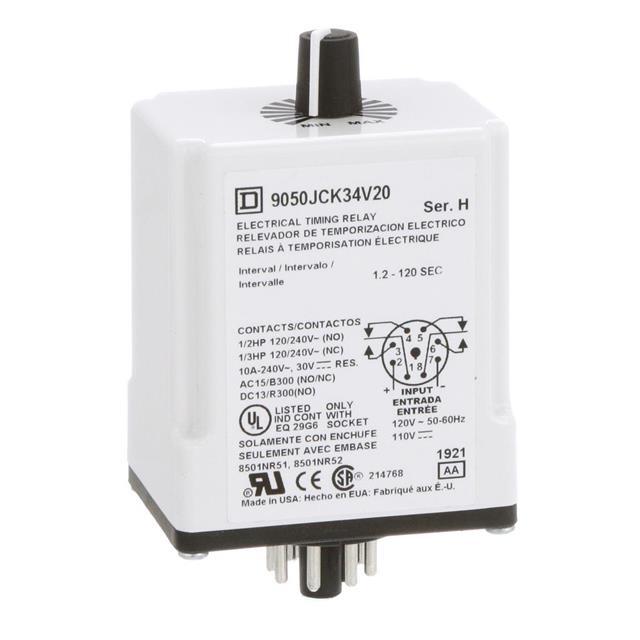

Same model may have multiple batches, images only for reference.
9050JCK17V14 Schneider Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9050JCK17V14

Part No 9050JCK17V14
Manufacturer Schneider Electric
Catalog Time Delay Relays
Description RELAY TIME DELAY 30MIN 10A 240V
Datasheet
9050JCK17V14 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Mounting Type Socketable
Relay Type Mechanical Relay
Function On-Delay
Circuit DPDT (2 Form C)
Delay Time 0.3 Min ~ 30 Min
Contact Rating @ Voltage 10A @ 240VAC
Voltage - Supply 24VAC/DC
Termination Style Plug In
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1550905-9050JCK17V14
Ultra Librarian 3D Model Ultra Librarian 9050JCK17V14 CAD Model
