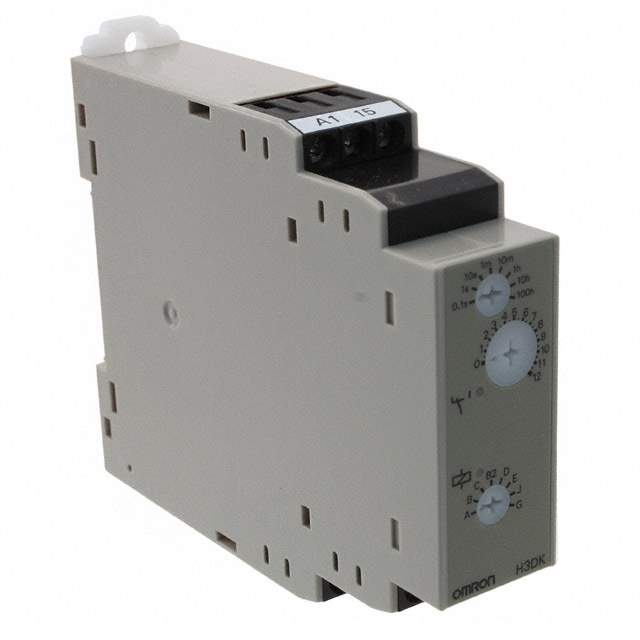

H3DK-M1 AC/DC24-240 Real Image
Same model may have multiple batches, images only for reference.

H3DK-M1 AC/DC24-240

Part No H3DK-M1 AC/DC24-240
Manufacturer Omron
Catalog Time Delay Relays
Description RELAY TIMER SPDT 5A 24-240V / Time Delay Relay 24 to 240VDC 24 to 240VAC SPDT( ())
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Industrial Controls
Manufacturer Omron Automation and Safety
Series H3DK-M
Relay Type Mechanical Relay
Function Programmable (Multi-Function)
Circuit SPDT (1 Form C)
Delay Time 0.1 Sec ~ 1200 Hrs
Contact Rating @ Voltage 5A @ 250VAC
Operating Supply Voltage 24 ~ 240VAC/DC
Mounting DIN Rail
Termination Style Screw Terminal
Timing Adjustment Method Screwdriver Slot
Timing Initiate Method Input Voltage
Win Source Part Number 775559-H3DK-M1 AC/DC24-240
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name H3DK-M1 AC/DC24-240
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian H3DK-M1 AC/DC24-240 CAD Model

Description

The H3DK-M1 AC/DC24-240 mechanical relay from Omron Automation and Safety.

  • Relay Type: Programmable (multi-function)
  • Circuit: SPDT (1 Form C)
  • Contact Rating: 5A @ 250VAC
  • Timing Adjustment: Screwdriver slot
  • Timing Initiate: Input voltage
  • Delay Time: 0.1 sec to 1200 hrs
  • Mounting: DIN rail
  • Termination: Screw terminal
  • Operating Supply Voltage: 24 ~ 240VAC/DC
  • Family: H3DK-M1 AC/DC24-240
  • ECCN: EAR99
  • Estimated EOL: 2029
  • Popularity: Medium
  • Quantity per Package: 1
