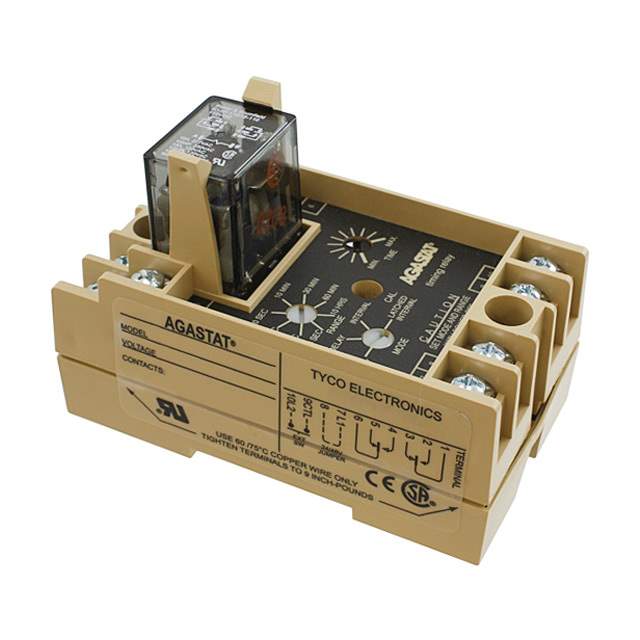

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr TE Connectivity Aerospace, Defense and Marine
Series SSF, AGASTAT
Package Bulk
Mounting Type DIN Rail
Relay Type Mechanical Relay
Function Programmable (Multi-Function)
Circuit DPDT (2 Form C)
Delay Time 0.1 Sec ~ 10 Hrs
Contact Rating @ Voltage 10A @ 120VAC
Voltage - Supply 120VAC
Termination Style Screw Terminal
Timing Adjustment Method Screwdriver Slot
Timing Initiate Method Input Voltage
Base Product Number SSFR9
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names 1423167-2,PB781,-SSFR90A-SI
Standard Package 1
Win Source Part Number 964076-SSFR90A
Ultra Librarian 3D Model Ultra Librarian SSFR90A CAD Model

Description

The Win Source Part Number 964076-SSFR90A is a time delay relay that belongs to the SSF, AGASTAT series.

  • Circuit: DPDT (2 Form C)
  • Contact Rating: 10A @ 120VAC
  • Delay Time: 0.1 Sec ~ 10 Hrs
  • Timing Adjustment: Screwdriver slot
  • Timing Initiate: Input voltage
  • Voltage Supply: 120VAC
  • Termination Style: Screw terminal
  • Mounting Type: DIN rail
  • Package: Bulk
  • Standard Package: 1
  • ECCN: EAR99
  • RoHS Status: Non-compliant
  • Supply and Demand Status: Balanced
