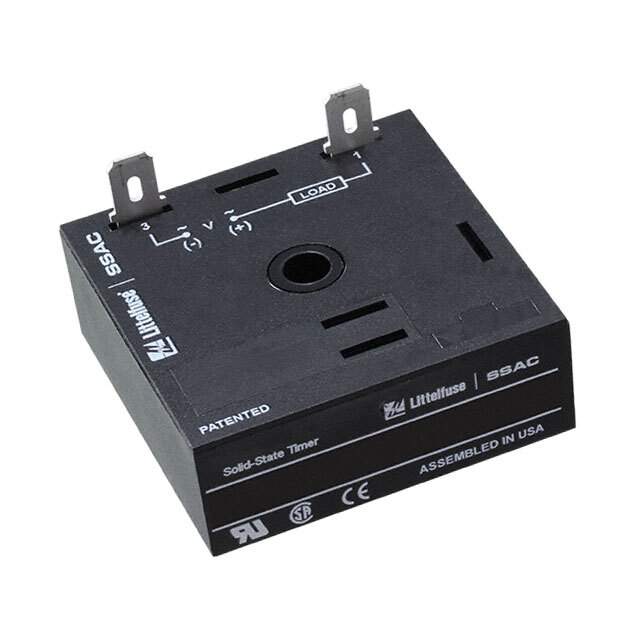

KSD1412S Real Image
Same model may have multiple batches, images only for reference.

KSD1412S

Part No KSD1412S
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 2SEC CHASSIS MT / On-Delay Time Delay Relay SPST-NO (1 Form A) Fixed, 2 Sec Delay Chassis Mount
Datasheet
KSD1412S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series KSD1
Package Bulk
Mounting Type Chassis Mount
Relay Type Solid State Relay
Function On-Delay
Circuit SPST-NO (1 Form A)
Delay Time Fixed, 2 Sec
Voltage - Supply 120VAC
Termination Style Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method Fixed
Timing Initiate Method Input Voltage
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names F10565,-1024-KSD1412S
Standard Package 1
Win Source Part Number 1195723-KSD1412S
Ultra Librarian 3D Model Ultra Librarian KSD1412S CAD Model

Description

The KSD1412S is an industrial automation and controls time delay relay that belongs to the KSD1 series.

  • Termination Style: quick connect 0.250 inches (6.3mm)
  • Packaging: bulk
  • Type: solid-state relay
  • Function: on-delay
  • Circuit: SPST-NO (1 Form A)
  • Delay Time: fixed @ 2 seconds
  • Timing Adjustment Method: fixed
  • Initiation: input voltage
  • Voltage Supply: 120VAC
  • Mounting: chassis mounted
  • ECCN: EAR99
