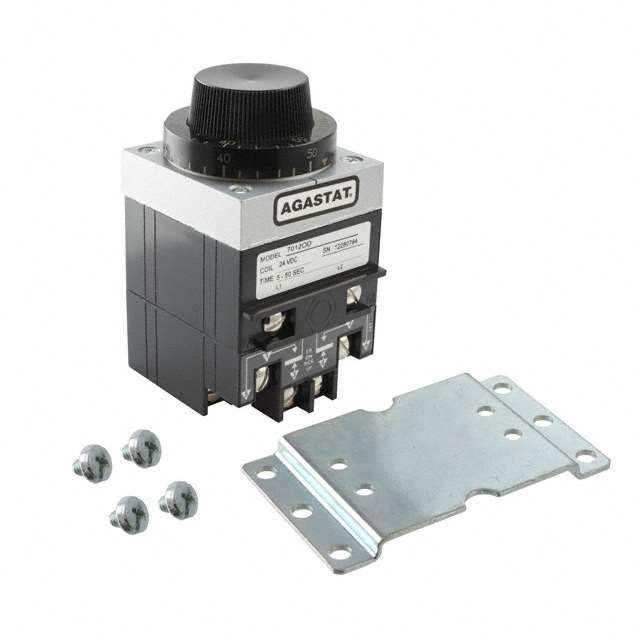

7012PC Real Image
Same model may have multiple batches, images only for reference.

7012PC

Part No 7012PC
Manufacturer TE Connectivity
Catalog Time Delay Relays
Description RELAY TIME DELAY 15SEC 10A 240V  /  On-Delay Time Delay Relay DPDT (2 Form C) 1.5 Sec ~ 15 Sec Delay 10A @ 240VAC Panel Mount
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr TE Connectivity Aerospace, Defense and Marine
Series 7000, AGASTAT
Package Bulk
Mounting Type Panel Mount
Relay Type Mechanical Relay
Function On-Delay
Circuit DPDT (2 Form C)
Delay Time 1.5 Sec ~ 15 Sec
Contact Rating @ Voltage 10A @ 240VAC
Voltage - Supply 125VDC
Termination Style Screw Terminal
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Base Product Number 7012P
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0050
Other Names 7012PC-ND,-2-1423159-3-SI,2-1423159-3-ND,-7012PC-SI,214231593,2-1423159-3,A115746,-2-1423159-3-SI-ND
Standard Package 1
Win Source Part Number 1015461-7012PC
Ultra Librarian 3D Model Ultra Librarian 7012PC CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine 7000 series time delay relay is a mechanical relay with a DPDT (2 Form C) circuit.

  • Function: On-delay
  • Delay Time: 1.5 Sec ~ 15 Sec
  • Timing Adjustment: Hand dial
  • Contact Rating: 10A @ 240VAC
  • Voltage Supply: 125VDC
  • Mounting: Panel
  • Termination Style: Screw terminal
  • ECCN: EAR99
  • RoHS: Non-compliant
  • Package: 1 relay
  • Other Part Numbers: 7012PC-ND and -2-1423159-3-SI
