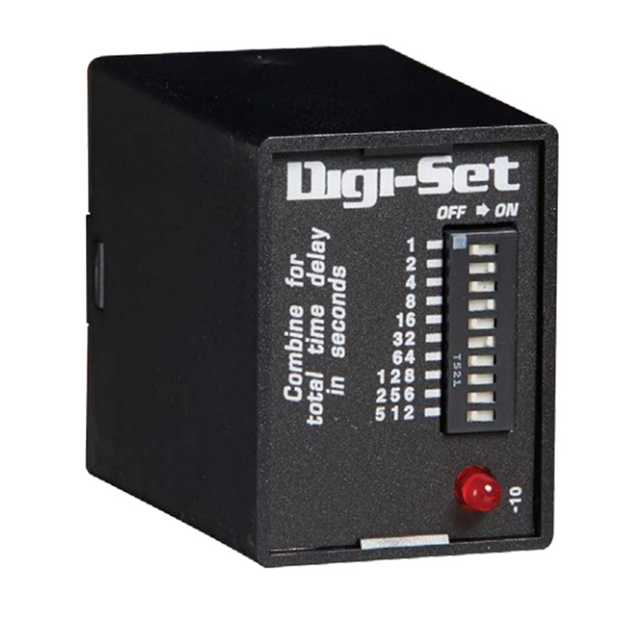

TDIL24DL Real Image
Same model may have multiple batches, images only for reference.

TDIL24DL

Part No TDIL24DL
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DEL 102.3SEC 10A 120V / Interval Time Delay Relay DPDT (2 Form C) 0.1 Sec ~ 102.3 Sec Delay 10A @ 120/240VAC Socketable
Datasheet
TDIL24DL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series TDI
Package Bulk
Mounting Type Socketable
Relay Type Mechanical Relay
Function Interval
Circuit DPDT (2 Form C)
Delay Time 0.1 Sec ~ 102.3 Sec
Contact Rating @ Voltage 10A @ 120/240VAC
Voltage - Supply 24VDC
Termination Style Plug In, 8 Pin (Octal)
Timing Adjustment Method DIP Switches
Timing Initiate Method Input Voltage
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names -1024-TDIL24DL
Standard Package 1
Win Source Part Number 1064880-TDIL24DL
Ultra Librarian 3D Model Ultra Librarian TDIL24DL CAD Model

Description

The Littelfuse Inc. TDIL24DL is an electronic component categorized as industrial automation and controls-time delay relays.

  • Series: TDI
  • Termination Style: plug-in, 8 pin (octal)
  • Package: bulk
  • Standard Package: one piece
  • Function: interval
  • Circuit: DPDT (2 Form C)
  • Relay Type: mechanical
  • Contact Rating @ Voltage: 10A @ 120/240VAC
  • Delay Time: adjustable from 0.1 seconds to 102.3 seconds using DIP switches
  • Timing Initiate Method: input voltage
  • Voltage Supply: 24VDC
  • ECCN: EAR99
  • HTSUS: 9107.00.8000
