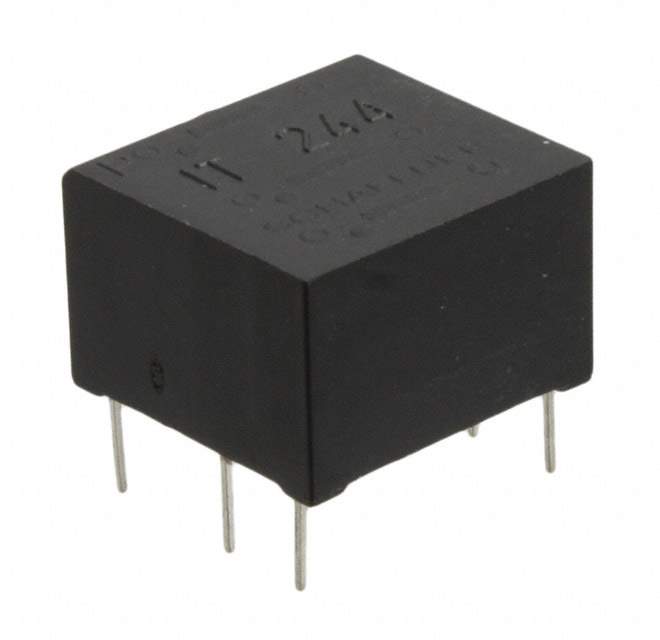

IT242 Real Image
Same model may have multiple batches, images only for reference.

IT242

Part No IT242
Manufacturer Schaffner EMC Inc.
Catalog Pulse Transformers
Description XFRMR PULSE 1:1:1 DL 2.5MH .1A / 2.5mH Data/Voice Coupling Pulse Transformer 1:1:1 Through Hole
Datasheet
IT242 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer Schaffner EMC Inc.
Packaging Tray
Transformer Type Data/Voice Coupling
Inductance 2.5mH
Mounting Through Hole
Size / Dimension 0.693" L x 0.657" W (17.60mm x 16.70mm)
Height - Seated (Max) 0.445" (11.30mm)
Temperature Range - Operating -25°C ~ 70°C
Weight 0.2 oz (5.7 g)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 817-1509,22-481,IT 242,800065
Standard Package 200
Win Source Part Number 1328493-IT242
Ultra Librarian 3D Model Ultra Librarian IT242 CAD Model

Description

The pulse transformer from Schaffner EMC Inc. is a high-quality data/voice coupling transformer that is designed to provide reliable performance in a variety of applications.

  • Inductance: 2.5mH
  • Height: 0.445"
  • Mounting Type: through-hole
  • ROHS3 Compliant: Yes
  • Temperature Range: -25°C to 70°C
  • Package: trays of 200
  • Weight: 0.2 oz (5.7 g)
