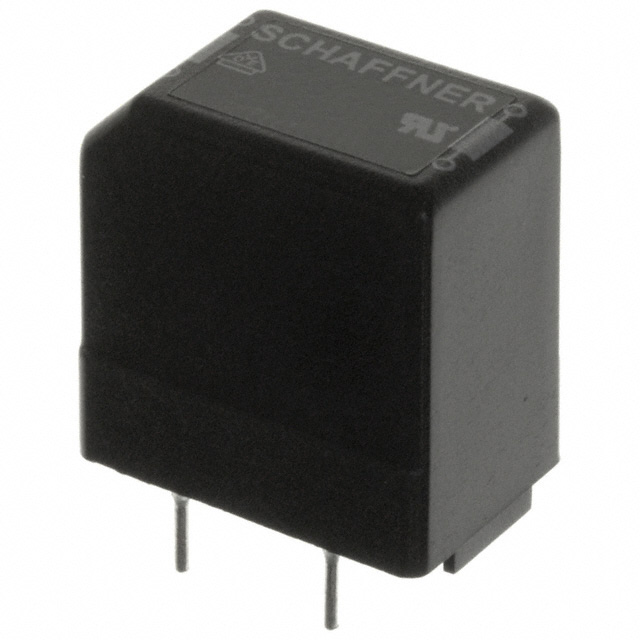

RN214-4/02 Schaffner EMC Inc.
Same model may have multiple batches, images only for reference.

RN214-4/02

Part No RN214-4/02
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description Common Mode Choke Through Hole Power Line 4A (Typ) 2 Lines 35 mOhm (Typ) -40°C ~ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters
Family Common Mode Chokes
Manufacturer Schaffner-EMC-Inc.
Series RN
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5mH @ 1kHz
Current Rating (Max) 4A (Typ)
DC Resistance (DCR) (Max) 35 mOhm (Typ)
Voltage Rating - AC 250V
Operating Temperature Range -40°C ~ 125°C
Approvals UR, VDE
Mounting Style Through Hole
Size / Dimension 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) 0.996" (25.30mm)
Package Vertical, 4 PC Pin
Win Source Part Number 210834-RN214-4/02
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RN214-4/02 CAD Model

Description

The Schaffner-EMC-Inc. RN214-4/02 is a common mode choke filter designed to be used in power line applications.

  • Voltage Rating: 250V AC
  • Maximum Current: 4A
  • DC Resistance: 35 mOhm (Typ)
  • Inductance: 1.5mH @ 1kHz
  • Package: vertical package
  • Pins: 4 PC pins
  • Mounting: through hole
  • Approvals: UR and VDE
  • Temperature Range: -40°C to 125°C
  • Supply and Demand Status: limited
