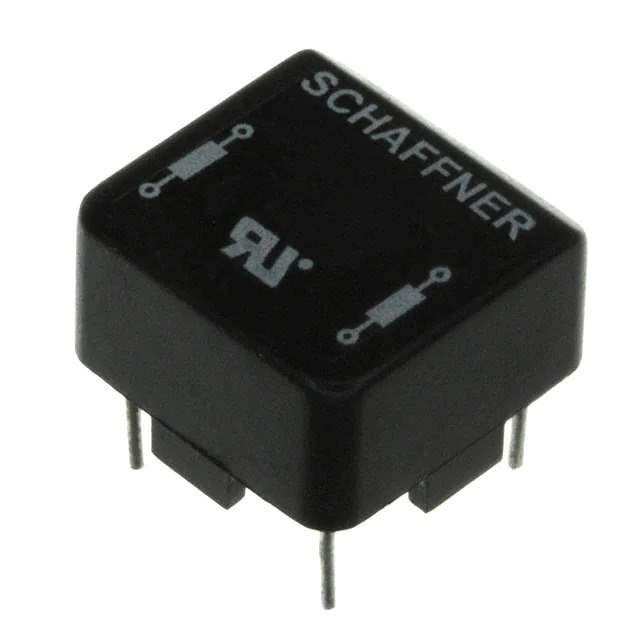

RN102-2-02 Real Image
Same model may have multiple batches, images only for reference.

RN102-2-02

Part No RN102-2-02
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 1.1MH 2A 2LN TH
Datasheet
RN102-2-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.1 mH @ 10 kHz
Current Rating (Max) 2A (Typ)
DC Resistance (DCR) (Max) 70mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UR, VDE
Mounting Type Through Hole
Size / Dimension 0.551" L x 0.551" W (14.00mm x 14.00mm)
Height (Max) 0.366" (9.30mm)
Package / Case Horizontal, 4 PC Pin
Standard Package 40 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 848402-RN102-2-02
Ultra Librarian 3D Model Ultra Librarian RN102-2-02 CAD Model

Description

The RN series common mode choke is a power line filter designed for filtering out common mode noise in electronic circuits from Schaffner EMC Inc.

  • Voltage Rating: 250V AC
  • Current Rating: 2A
  • Size: 0.551" L x 0.551" W (14.00mm x 14.00mm)
  • Height: 0.366" (9.30mm)
  • Mounting: Through Hole
  • Package: Horizontal, 4 PC Pin
  • Inductance: 1.1mH @ 10kHz
  • DC Resistance: 70mOhm
  • Operating Temperature: -40°C to 125°C
  • Series: RN
  • Packaging: Tube
  • Pieces per Package: 40
  • Status: Obsolete
  • Approvals: UR and VDE
