Same model may have multiple batches, images only for reference.

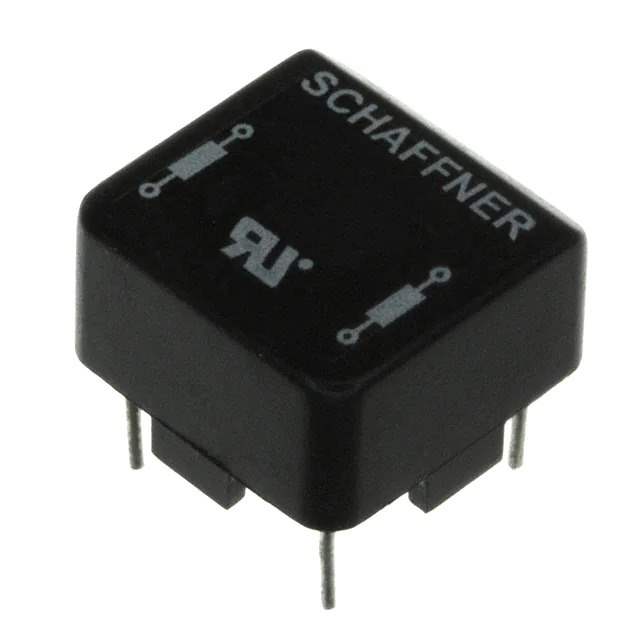

RN102-1-02-3M0 Real Image
Same model may have multiple batches, images only for reference.

RN102-1-02-3M0

Part No RN102-1-02-3M0
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 3MH 1A 2LN TH
Datasheet
RN102-1-02-3M0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 210mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Size / Dimension 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max) 0.366" (9.30mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number RN102
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
California Prop 65 Warning Information
Win Source Part Number 848737-RN102-1-02-3M0
Ultra Librarian 3D Model Ultra Librarian RN102-1-02-3M0 CAD Model

Description

The 848737-RN102-1-02-3M0 is a common mode choke filter manufactured by Schaffner EMC Inc. 848737-RN102-1-02-3M0 is manufactured by Schaffner EMC Inc..

  • Filter Type: Common Mode Choke
  • Voltage Rating: 300V
  • Operating Temperature: -40°C ~ 100°C
  • Applications: Power Line
  • Series: RN
  • Product Status: Active
  • Packaging: Tape & Reel (TR)
  • Standard Package: 40 Pieces
