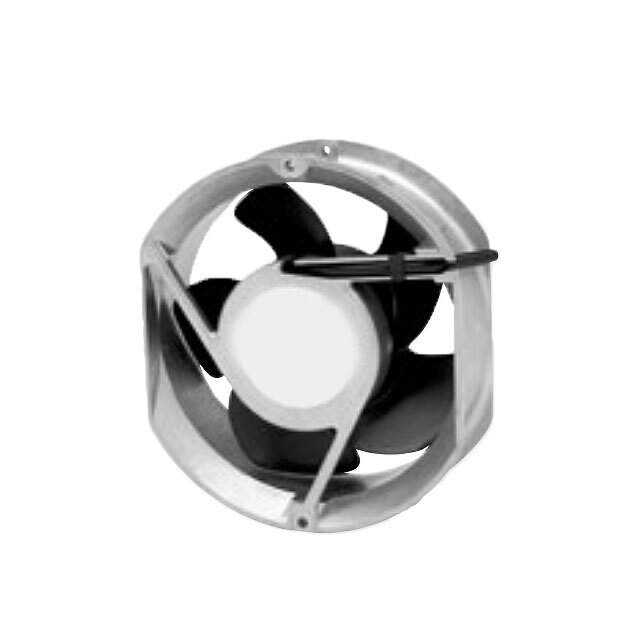

109E5724H501 Real Image
Same model may have multiple batches, images only for reference.

109E5724H501

Part No 109E5724H501
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 172X51MM 24VDC WIRE / Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 150mm H Ball 226.0 CFM (6.33m³/min) 3 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 172
Package Box
Voltage - Rated 24VDC
Size / Dimension Rectangular/Rounded - 172mm L x 150mm H
Width 51.00mm
Air Flow 226.0 CFM (6.33m³/min)
Static Pressure 0.551 in H2O (137.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 52.0dB(A)
Power (Watts) 13.92 W
RPM 3050 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 1.7 lbs (760.0 g)
Current Rating (Amps) 0.580A
Voltage Range 20.4 ~ 27.6VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 109E5724
Standard Package 8
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1340053-109E5724H501
Ultra Librarian 3D Model Ultra Librarian 109E5724H501 CAD Model

Description

The San Ace 172 DC Brushless Fan is a high-quality fan designed for thermal management in electronic devices.

  • Features: Locked Rotor Protection, Speed Sensor (Tach)
  • Termination: 3 Wire Leads
  • Package: Box
  • Shape: Rectangular/Rounded
  • Size / Dimension: 172mm L x 150mm H
  • Voltage Range: 20.4 ~ 27.6VDC
  • Power (Watts): 13.92 W
  • Lifetime @ Temp.: 40000 Hrs @ 60°C
  • Weight: 1.7 lbs (760.0 g)
  • Air Flow: 226.0 CFM (6.33m³/min)
  • Static Pressure: 0.551 in H2O (137.2 Pa)
  • Noise: 52.0dB(A)
  • Speed: 3050 RPM
  • Approvals: CSA, TUV, UL
