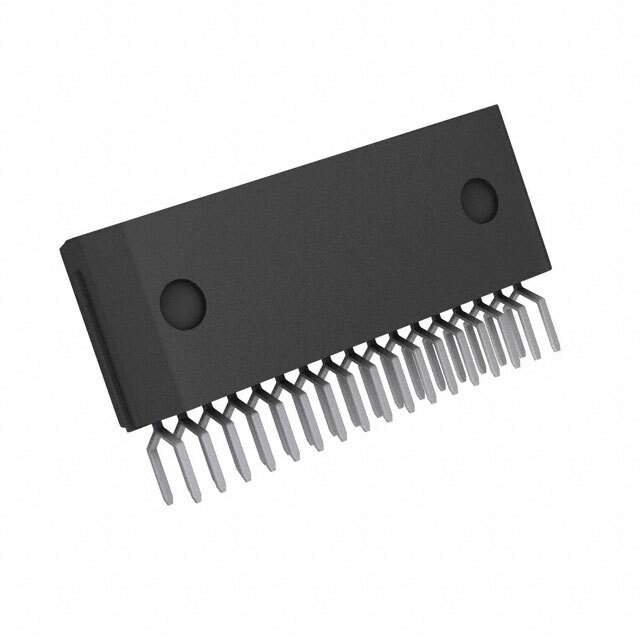

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sanken
Packaging Bulk
Motor Type - Stepper Unipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Power MOSFET
Step Resolution 1, 1/2, 1/4, 1/8
Applications General
Output Current 1.5A
Operating Supply Voltage 10 V ~ 44 V
Voltage - Load 10 V ~ 44 V
Operating Temperature Range -20°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 18-SIP (Bent and Staggered Leads)
Manufacturer Package 18-ZIP
Win Source Part Number 1260557-STA7131MPR
Manufacturer Homepage www.sanken-ele.co.jp/en
Popularity Medium
Supply and Demand Status Limited
Family Name STA7131MPR
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian STA7131MPR CAD Model

Description

The STA7131MPR is a power MOSFET that is suitable for general applications.

  • Application: General Applications
  • Integration: Fully Integrated Driver with Control and Power Stages
  • Interface: Parallel
  • Output Configuration: Half-Bridge
  • Load Voltage: 10 V to 44 V
  • Current Output: 1.5 A
  • Motor Type: Unipolar (Stepper), Brushed DC (AC/DC)
  • Step Resolution: 1, 1/2, 1/4, 1/8
  • Package: 18-SIP (Bent and Staggered Leads)
  • Operating Temperature: -20°C to 150°C (TJ)
  • Operating Supply Voltage: 10 V to 44 V
  • Manufacturer: Sanken
  • Packaging: Bulk
