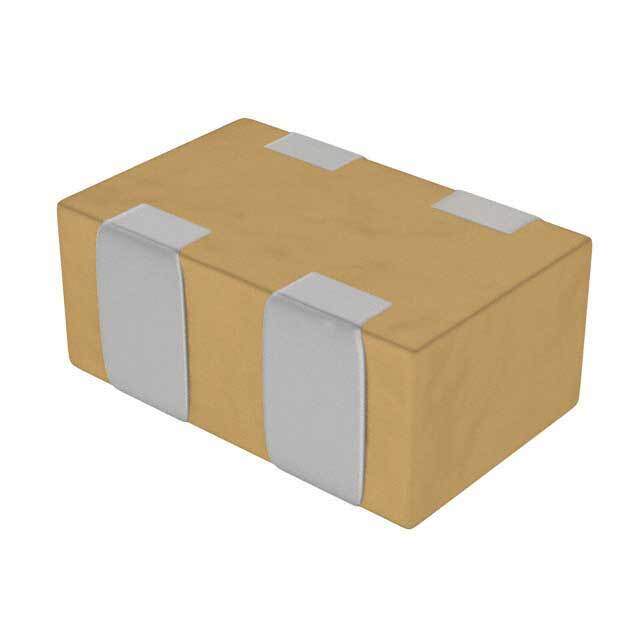

The CKCL22C0G1H150K is a capacitor network or array manufactured by Samwha. It is a multi-element capacitor designed to provide a compact solution for applications requiring multiple capacitors. The device consists of several individual capacitors integrated into a single package, simplifying PCB layout and reducing component count.

Applications

• Power Supply Filtering: Used for smoothing voltage ripples and reducing noise in power supply circuits.
• Bypass Capacitors: Placed near integrated circuits to provide a local source of charge and reduce voltage transients.
• Decoupling: Reduces noise and interference between different circuit sections.
• Signal Filtering: Used to filter unwanted frequencies from signals in audio, RF, and digital circuits.
• Timing Circuits: Employed in oscillator and timer circuits to set specific frequencies.

Features

• Multi-Element Capacitor: Integrates multiple capacitors into a single package.
• Compact Size: Reduces board space requirements compared to discrete capacitors.
• Low ESL and ESR: Minimizes parasitic inductance and resistance for improved performance.
• High Reliability: Manufactured using high-quality materials for long-term stability.
• Surface Mount Technology (SMT): Designed for automated assembly on printed circuit boards.

Benefits

• Simplified PCB Layout: Reduces component count and simplifies routing.
• Reduced Board Space: Saves valuable space on the PCB, allowing for smaller designs.
• Improved Performance: Low ESL and ESR enhance circuit performance.
• Increased Reliability: High-quality construction ensures long-term stability.
• Cost Savings: Reduces assembly time and component inventory costs.

Additional Details

Specific details such as capacitance value, voltage rating, tolerance, and temperature coefficient can be found in the product datasheet from Samwha. Capacitor networks are typically available in various configurations, including different numbers of elements, capacitance values, and package sizes. The CKCL22C0G1H150K is designed for surface mount technology (SMT), which enables automated assembly on printed circuit boards. These devices offer a robust and efficient solution for applications requiring multiple capacitors in a compact form factor, making them ideal for modern electronic designs.
