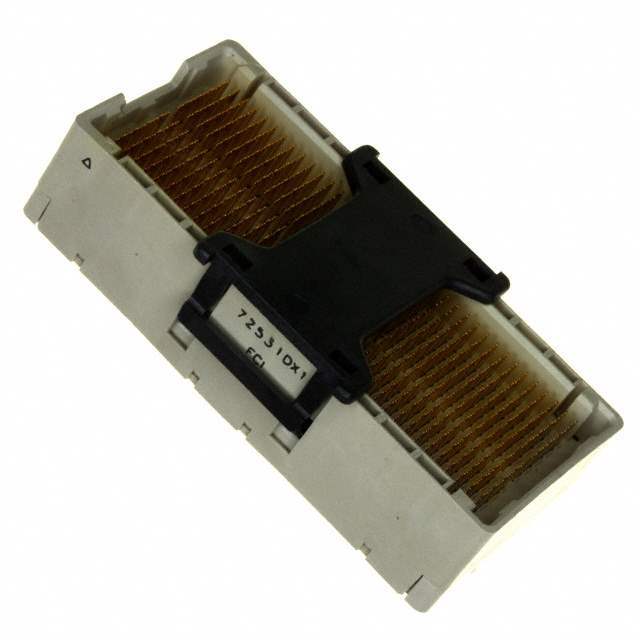

10060911-001LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10060911-001LF

Part No 10060911-001LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN DIFF ARRAY PLUG 296POS SMD
Datasheet
10060911-001LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324247-10060911-001LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Rectangular Connectors > Arrays, Edge Type, Mezzanine (Board to Board)
Packaging Tray
Part Status Obsolete
Connector Type Differential Pair Array, Male
Number of Positions 296 Signal (148 Pair)
Pitch 0.051" (1.30mm)
Number of Rows 18
Mounting Type Surface Mount
Contact Finish Gold or Gold, GXT™
Ultra Librarian 3D Model Ultra Librarian 10060911-001LF CAD Model

Description

296 Signal (148 Pair) Position Connector Differential Pair Array, Male Surface Mount Gold or Gold, GXT™
