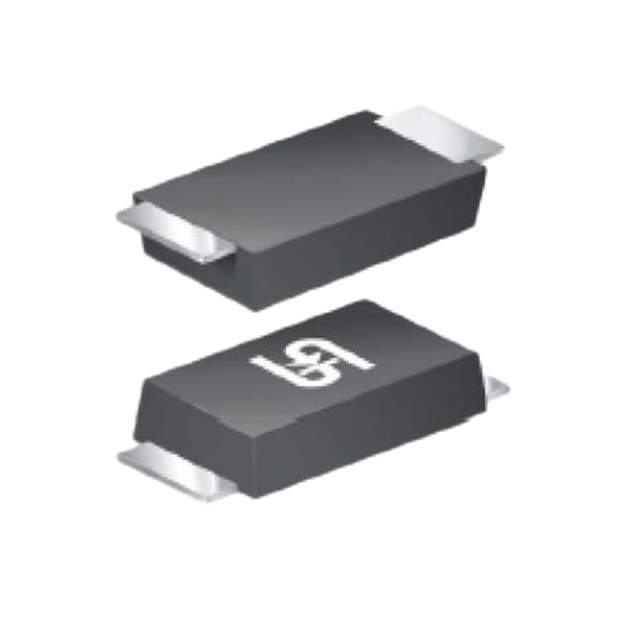

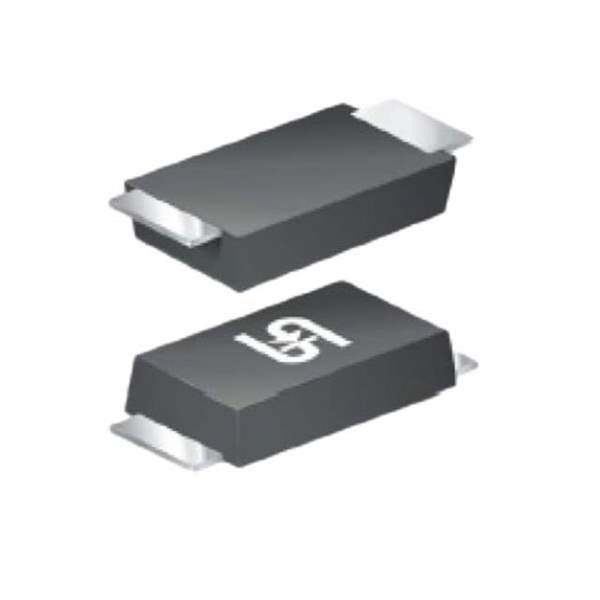

UF1JLW Real Image1 UF1JLW Real Image2
Same model may have multiple batches, images only for reference.
UF1JLW Real Image1 UF1JLW Real Image2
UF1JLW Real Image1 UF1JLW Real Image2
Same model may have multiple batches, images only for reference.

UF1JLW

Part No UF1JLW
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 1A SOD123W / Diode 600 V 1A Surface Mount SOD-123W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Rectifiers>Single Diodes
Mfr Taiwan Semiconductor
Series -
Package Tape & Reel
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 25 ns
Current - Reverse Leakage @ Vr 1 µA @ 600 V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123W
Supplier Device Package SOD-123W
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number UF1J
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 10,000 pcs
Win Source Part Number 1383787-UF1JLW
Ultra Librarian 3D Model Ultra Librarian UF1JLW CAD Model

Description

The UF1JLW is a fast recovery diode designed for rectification applications. It features a Taiwan Semiconductor manufactured device.

  • Maximum Reverse Voltage (Vr): 600V
  • Average Rectified Current (Io): 1A
  • Forward Voltage Drop (Vf): 1.5V @ 1A
  • Reverse Recovery Time (trr): 25ns
  • Package: SOD-123W
  • Operating Temperature Range: -55°C to 150°C
