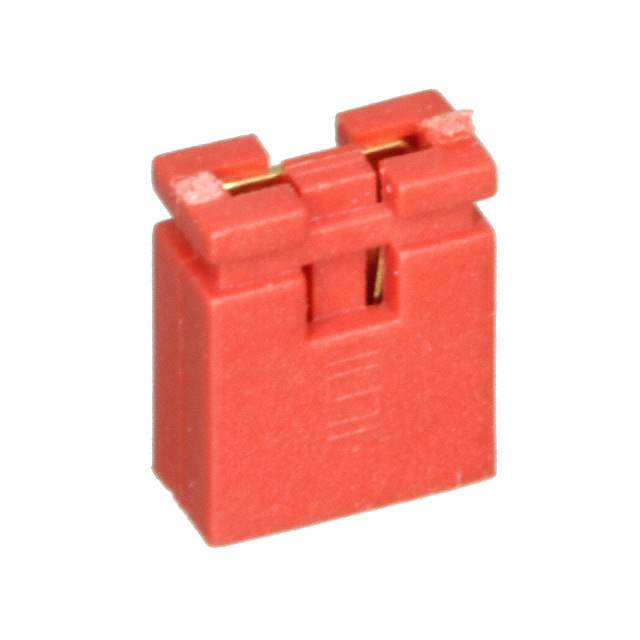

SNT-100-RD-G Real Image
Same model may have multiple batches, images only for reference.

SNT-100-RD-G

Part No SNT-100-RD-G
Manufacturer Samtec Inc.
Catalog Shunts, Jumpers
Datasheet
SNT-100-RD-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Shunts, Jumpers
Mfr Samtec Inc.
Series SNT
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.240" (6.10mm)
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Color Red
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Current Rating (Amps) 4.3A per Contact
Base Product Number SNT-100
Other Names SNT-100-RD-G,SAM10727
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1285221-SNT-100-RD-G
Ultra Librarian 3D Model Ultra Librarian SNT-100-RD-G CAD Model

Description

The Samtec SNT-100-RD-G is a shunt jumper that is ideal for use in a variety of electronic applications.

  • Manufacturer: Samtec
  • Type: Open-Top Shunt
  • Pitch: 0.100” (2.54mm)
  • Used With: Female Sockets
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Current Rating: 4.3A per Contact
  • Material: Polybutylene Terephthalate (PBT)
  • Material Flammability Rating: UL94 V-0
  • Height: 0.240” (6.10mm)
  • Temperature Rating: Up to 125°C
