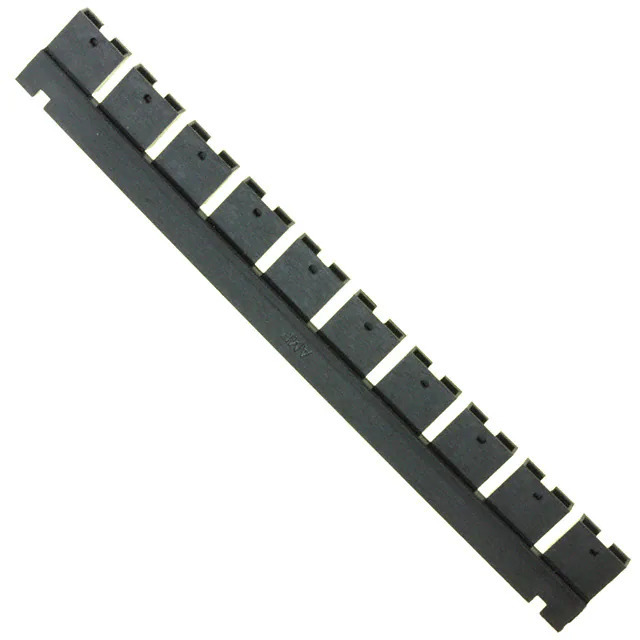

531230-2 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Shunts, Jumpers
Mfr TE Connectivity AMP Connectors
Series -
Package Bulk
Product Status Active
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.200" (5.08mm)
Height 0.250" (6.35mm)
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Color Black
Material Flammability Rating UL94 V-0
Housing Material Polyester, Glass Filled
Voltage Rating -
Current Rating (Amps) 3A
Base Product Number 531230
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363457-531230-2
Ultra Librarian 3D Model Ultra Librarian 531230-2 CAD Model

Description

The TE Connectivity AMP Connectors Shunts, Jumpers are a versatile component for connecting electrical circuits.

  • Current Rating: 3A
  • Socket Type: Female
  • Contact Finish: Gold
  • Flammability Rating: UL94 V-0
  • Housing Material: Polyester, Glass-Filled
  • Pitch: 0.200" (5.08mm)
  • Product Status: Active
