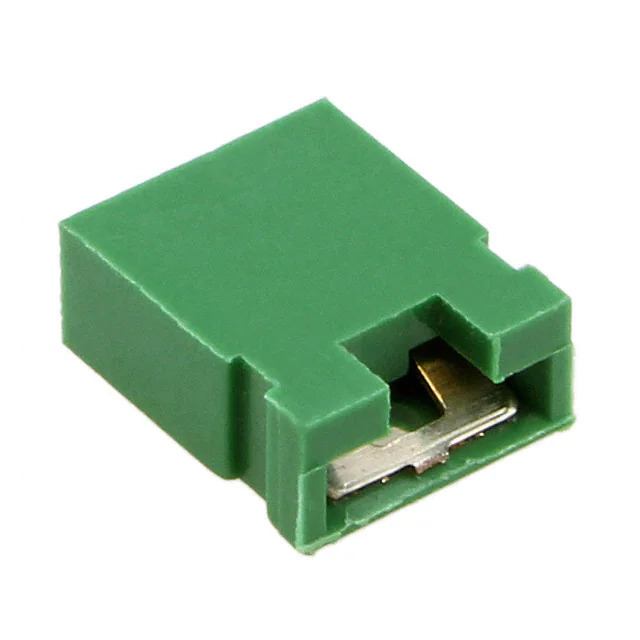

142270-5 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Shunts, Jumpers
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod IV
Package Bulk
Product Status Active
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.248" (6.30mm)
Contact Finish Gold
Contact Finish Thickness 39.4µin (1.00µm)
Color Green
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Voltage Rating -
Current Rating (Amps) 3A
Base Product Number 142270
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363462-142270-5
Ultra Librarian 3D Model Ultra Librarian 142270-5 CAD Model

Description

The TE Connectivity AMP Connectors AMPMODU Mod IV shunt jumper is a versatile component that provides a reliable connection in various electronic applications.

  • Design: Open Top
  • Current Rating: 3A
  • Contact Finish: Gold (39.4µin (1.00µm))
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Housing Color: Green
