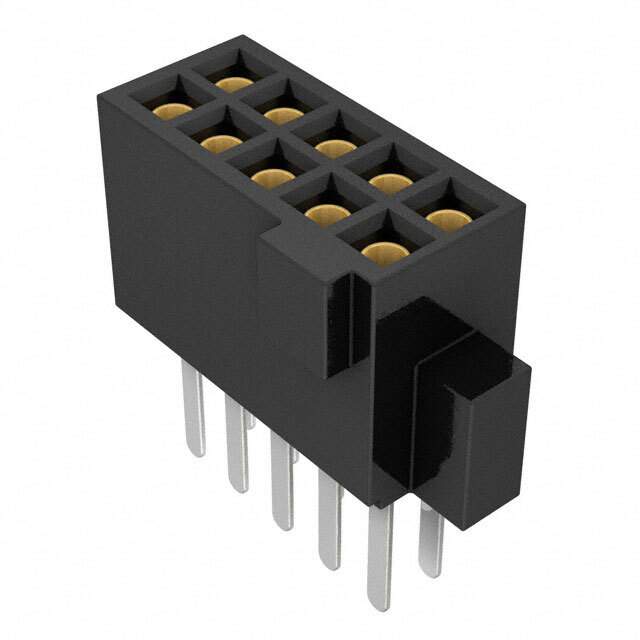

SFML-105-01-L-D Real Image
Same model may have multiple batches, images only for reference.

SFML-105-01-L-D

Part No SFML-105-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFML-105-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFML
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Base Product Number SFML-105
Other Names SAM11749,SFML-105-01-L-D
Standard Package 57
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285415-SFML-105-01-L-D
Ultra Librarian 3D Model Ultra Librarian SFML-105-01-L-D CAD Model

Description

The Samtec Inc. 1285415-SFML-105-01-L-D is a rectangular connector with a receptacle connector type and female socket contact type.

  • Positions: 10
  • Positions Loaded: All
  • Pitch: 0.050" (1.27mm)
  • Current Rating: 3.2A per contact
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Contact Finish-Mating: Gold
  • Contact Finish-Post: Tin
  • Temperature Range: -55°C to 125°C
  • Insulation Material: Liquid Crystal Polymer (LCP)
