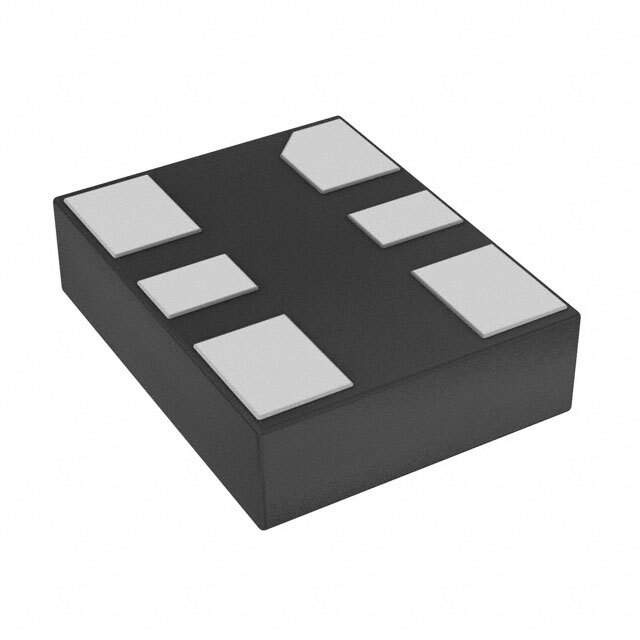

DSC1101CE1-011.2896T

Part No DSC1101CE1-011.2896T
Manufacturer Microchip Technology
Catalog Oscillators
Description MEMS OSC LOW POWER LVCMOS 20C-7 / 11.2896 MHz XO (Standard) CMOS Oscillator 2.25V ~ 3.6V Standby (Power Down) 6-VDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Microchip Technology
Series DSC1101
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 11.2896 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 2.25V ~ 3.6V
Absolute Pull Range (APR) ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 35mA
Mounting SMD (SMT)
Package / Case 6-VDFN
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 95µA
Base Product Number DSC1101
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1204671-DSC1101CE1-011.2896T
Ultra Librarian 3D Model Ultra Librarian DSC1101CE1-011.2896T CAD Model

Description

Product Overview: DSC1101CE1-011.2896T from Microchip Technology

The DSC1101CE1-011.2896T is a high-performance, precision MEMS oscillator from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This state-of-the-art oscillator is designed to meet the stringent requirements of today's electronic devices, offering a reliable and stable frequency source for a wide range of applications.

With its compact footprint, the DSC1101CE1-011.2896T is ideal for space-constrained applications. It comes in a small 6-pin ceramic package that measures just 3.2 x 2.5 mm, making it an excellent choice for portable devices, IoT applications, and other systems where board space is at a premium.

The oscillator operates at a fixed frequency of 11.2896 MHz, which is a common clock frequency used in digital audio equipment and other applications requiring a precise and stable timing source. The high stability and low jitter of the DSC1101CE1-011.2896T ensure optimal performance for applications that cannot tolerate frequency variations.

One of the key features of this MEMS oscillator is its low power consumption, which makes it suitable for battery-powered devices where energy efficiency is critical. Additionally, the DSC1101CE1-011.2896T boasts excellent temperature stability, maintaining consistent performance over a wide temperature range, typically from -40°C to +85°C.

The oscillator also provides robust resistance to shock and vibration, which is essential for applications in harsh environments or those subject to mechanical stresses. This durability is a hallmark of MEMS technology and contributes to the reliability and longevity of the device.

Integration is straightforward, as the DSC1101CE1-011.2896T is designed to be a drop-in replacement for traditional crystal oscillators, requiring no external components for operation. This plug-and-play convenience allows designers to reduce development time and accelerate time-to-market for their products.

In summary, the DSC1101CE1-011.2896T MEMS oscillator from Microchip Technology is a high-quality, highly reliable timing solution that combines small size, low power consumption, and excellent environmental resilience, making it an ideal choice for a multitude of modern electronic applications.
