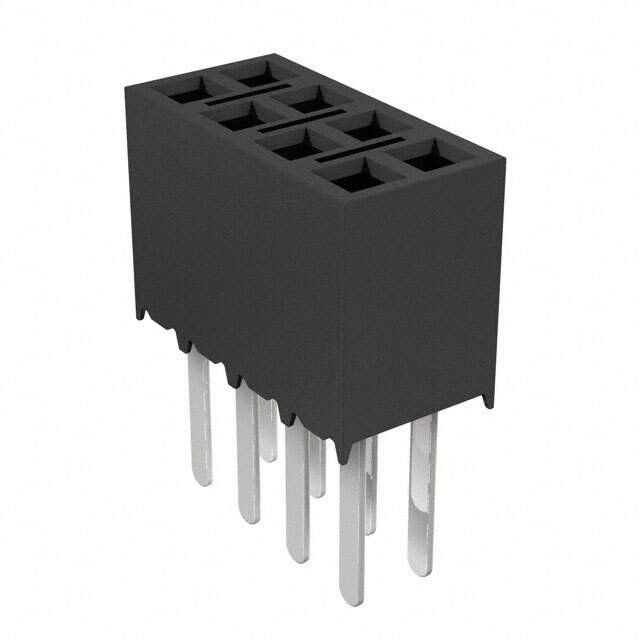

SFM-104-01-L-D Real Image
Same model may have multiple batches, images only for reference.

SFM-104-01-L-D

Part No SFM-104-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFM-104-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-104
Standard Package 64
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1286737-SFM-104-01-L-D
Ultra Librarian 3D Model Ultra Librarian SFM-104-01-L-D CAD Model

Description

The Tiger Eye™ SFM series from Samtec Inc. is a rectangular connector that comes with 8 positions, 2 rows, and a receptacle connector type.

  • Positions: 8
  • Rows: 2
  • Connector Type: Receptacle
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Contact Material: Beryllium Copper
  • Pitch: 0.050 inches (1.27 mm)
  • Gold Finish Thickness: 10.0µin (0.25µm) for mating
  • Post Finish: Tin
  • Current Rating: 3.2A per contact
  • Temperature Range: -55°C to 125°C
  • Mounting: Through-Hole
  • Package: Tube
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Material Flammability Rating: UL94 V-0
