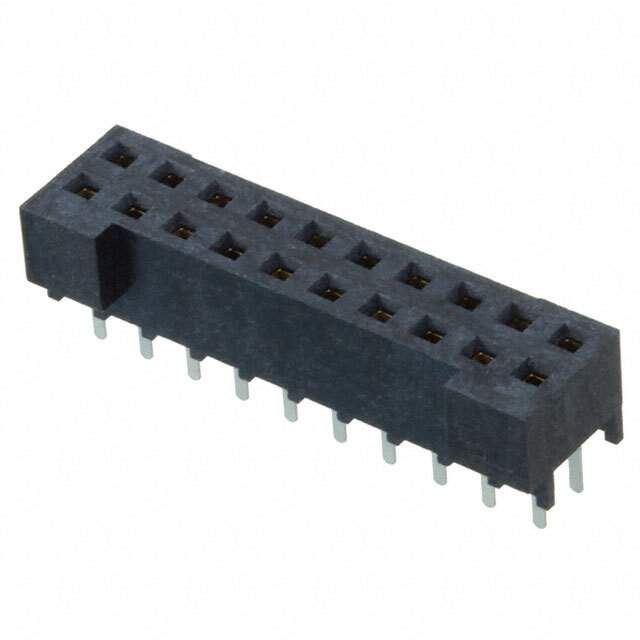

S2M-110-01-L-D Real Image
Same model may have multiple batches, images only for reference.

S2M-110-01-L-D

Part No S2M-110-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
S2M-110-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ S2M
Package Tube
Connector Type Socket
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.178" (4.51mm)
Contact Length - Post 0.082" (2.08mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Current Rating (Amps) 2.6A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number S2M-110
Other Names SAM12808,S2M-110-01-L-D
Standard Package 28
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287954-S2M-110-01-L-D
Ultra Librarian 3D Model Ultra Librarian S2M-110-01-L-D CAD Model

Description

The Samtec Inc. S2M-110-01-L-D is a rectangular connector with a socket contact type.

  • Positions: 20
  • Positions Loaded: All
  • Rows: Two
  • Termination: Solder
  • Mounting: Through-Hole
  • Insulation Color: Black
  • Operating Temperature: -55°C to 125°C
  • Series: Tiger Eye™ S2M
  • ECCN: EAR99
