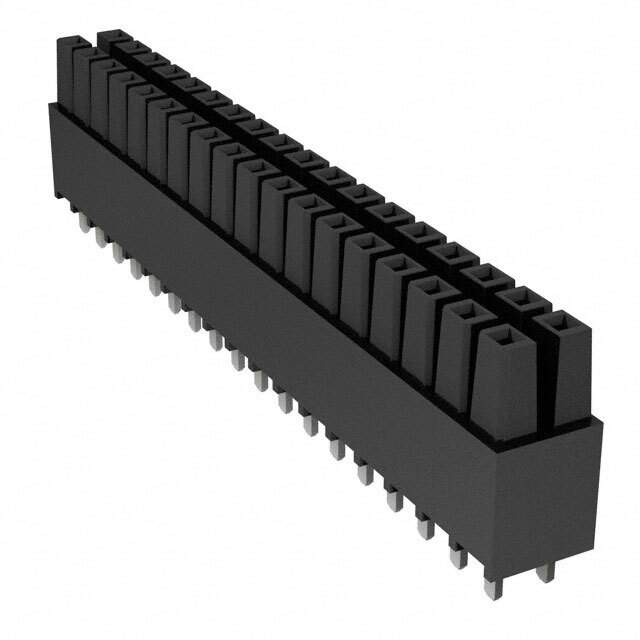

IPS1-118-01-S-D

Name: IPS1-118-01-S-D
Brand: Samtec Inc.
SKU: 1085942
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IPS1-118-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 36POS 0.1 GOLD PCB / 36 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	IPS1-118-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Mini Mate® IPS1
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	36
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Voltage Rating	775VAC, 1095VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	IPS1-118
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1085942-IPS1-118-01-S-D
Ultra Librarian 3D Model	Ultra Librarian IPS1-118-01-S-D CAD Model

Description

The Mini Mate® IPS1 Receptacle is a rectangular connector designed for board to board connection.

Positions: 36
Rows: 2
Sockets: female
Insulation material: liquid crystal polymer (LCP)
Color: black
Contact material: phosphor bronze
Contact plating (mating): gold
Contact plating (post): tin
Voltage rating: 775VAC and 1095VDC
Temperature range: -55°C to 125°C
Mounting: through hole
Row spacing: 0.100" (2.54mm)
