Same model may have multiple batches, images only for reference.

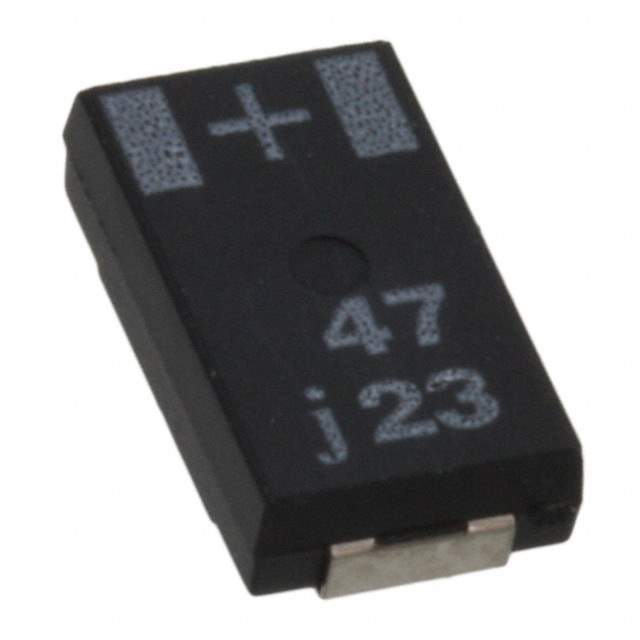

6SXB47M Real Image
Same model may have multiple batches, images only for reference.

6SXB47M

Part No 6SXB47M
Manufacturer Rubycon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 6.3V SMD
Datasheet
6SXB47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymer
Capacitance 47μF
Tolerance ±20%
Voltage Rating 6.3V
ESR 13 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Ripple Current - High Frequency 3A @ 100kHz
Height - Seated (Max) 0.075" (1.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 105133-6SXB47M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6SXB47M CAD Model

Description

Overview

Designed for high performance, the 6SXB47M is perfect for users looking to enhance their electronic systems.

Features and Benefits

  • High efficiency for extended operation
  • Low thermal resistance for better heat management
  • Minimal power loss

Applications

  • Battery management systems
  • Renewable energy converters
  • Automated testing equipment

Additional Details

The component supports easy integration with existing systems, promoting smooth operational workflows.
