Same model may have multiple batches, images only for reference.

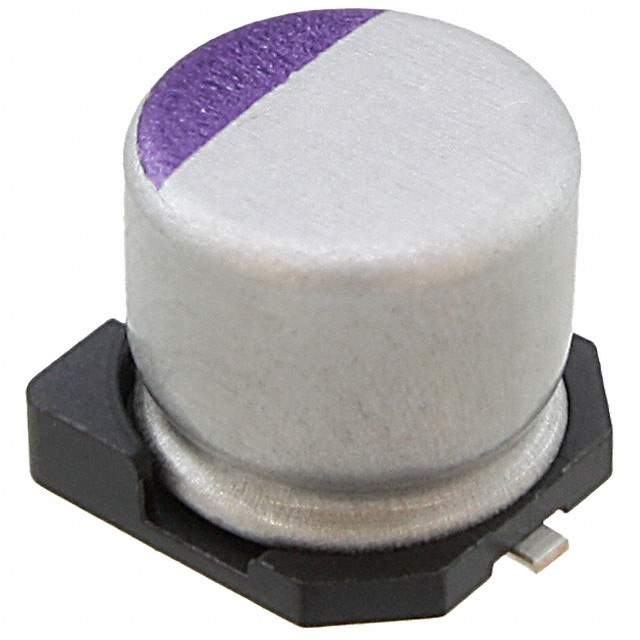

16SVPF180M Real Image
Same model may have multiple batches, images only for reference.

16SVPF180M

Part No 16SVPF180M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 16V SMD  /  180 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 22mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPF
Package Tape & Reel
Type Polymer
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 22mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 165 mA @ 120 Hz
Ripple Current @ High Frequency 3.3 A @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 16SVPF
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16479DKR,P16479TR,P16479CT
Standard Package 1,000
Win Source Part Number 1119724-16SVPF180M
Ultra Librarian 3D Model Ultra Librarian 16SVPF180M CAD Model

Description

The 1119724-16SVPF180M is a polymer capacitor from the OS-CON™ SVPF series.

  • Manufacturer: Panasonic Electronic Components
  • Series: OS-CON™ SVPF
  • Capacitance: 180 µF
  • Voltage Rating: 16 V
  • Mounting: Surface Mount
  • Standard Package: 1,000
  • Height (Seated): 0.236" (6.00mm)
  • ESR: 22mOhm
  • Lifetime: 5000 Hrs @ 105°C
  • Ripple Current (Low Frequency): 165 mA @ 120 Hz
  • Ripple Current (High Frequency): 3.3 A @ 100 kHz
  • Application: General-Purpose
  • Temperature Range: -55°C to 105°C
