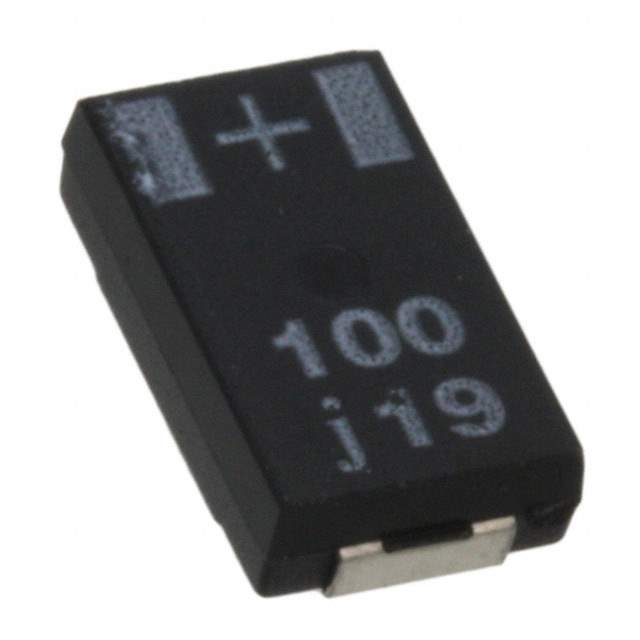

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Rubycon
Series PC-CON, SXB
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 18mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1691-1,1189-1691-2,1189-1691-6
Standard Package 3,500
Win Source Part Number 1136106-6SXB100M
Ultra Librarian 3D Model Ultra Librarian 6SXB100M CAD Model

Description

The Rubycon 1136106-6SXB100M capacitor is a high-quality aluminum-polymer capacitor that is ideal for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage Rating: 6.3 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 18mOhm
  • Lifetime @ Temperature of 105°C: 2000 Hrs
  • Mounting: SMD (SMT)
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Package/Case: 2917 (7343 Metric)
  • Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Series: PC-CON, SXB
  • Packaging: Tape & Reel
  • Temperature Range: -55°C to 105°C
  • Ripple Current @ High Frequency: 3 A @ 100 kHz
