Same model may have multiple batches, images only for reference.

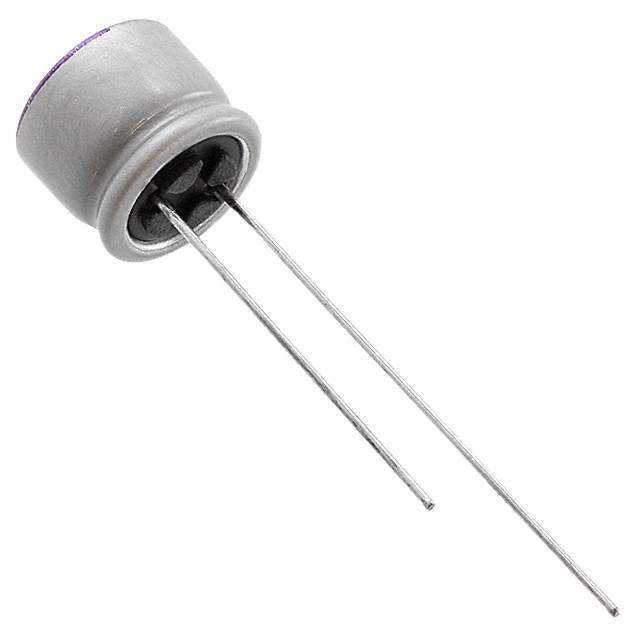

20SEP47M Real Image
Same model may have multiple batches, images only for reference.

20SEP47M

Part No 20SEP47M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 20V T/H / Radial Lead Type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Packaging Bulk
Type Polymer
Capacitance 47μF
Tolerance ±20%
Voltage - Rated 20V
ESR (Equivalent Series Resistance) 45mOhm
Lifetime at Temp. 3000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications Use For General
Ripple Current at Low Frequency 94.5mA at 120Hz
Ripple Current at High Frequency 1.89A at 100kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 200
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807400-20SEP47M
Ultra Librarian 3D Model Ultra Librarian 20SEP47M CAD Model

Description

The Panasonic Electronic Components 807400-20SEP47M is a medium popularity electronic component.

  • Component Type: Polymer Capacitor
  • Capacitance: 47μF
  • Tolerance: ±20%
  • Voltage Rating: 20V
  • ESR: 45mOhm
  • Applications: General
