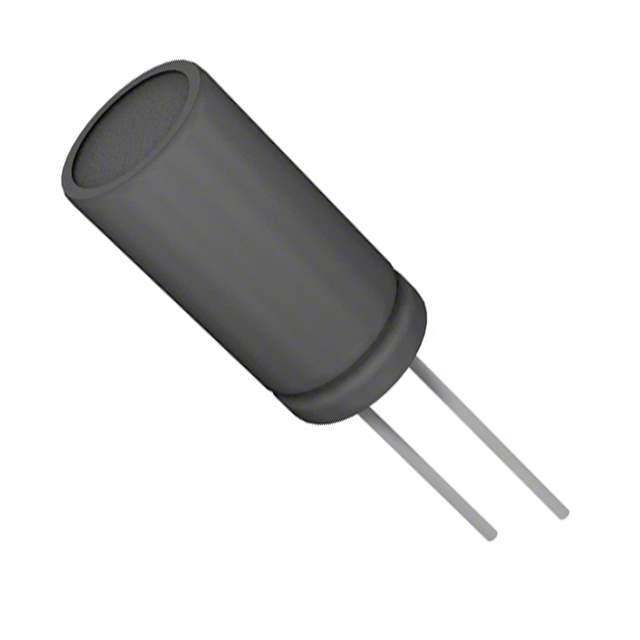

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 504 mA @ 120 Hz
Ripple Current @ High Frequency 1.2 A @ 100 kHz
Impedance 78 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1330249-63YXJ220M10X20
Ultra Librarian 3D Model Ultra Librarian 63YXJ220M10X20 CAD Model

Description

The Rubycon 1330249-63YXJ220M10X20 aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 220 µF and a voltage rating of 63 V.

  • Application: General Purpose
  • Capacitance: 220 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Mounting Type: Through Hole
  • Package / Case: Radial Can
  • Lifetime @ Temp.: 10000 hours @ 105°C
  • Impedance: 78 mOhms
  • ESR (Equivalent Series Resistance): Not Specified
  • Ripple Current @ Low Frequency: 504 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.2 A @ 100 kHz
  • Size / Dimension: 0.394" Diameter
  • Height - Seated (Max): 0.866" Height
  • Manufacturer: Rubycon
