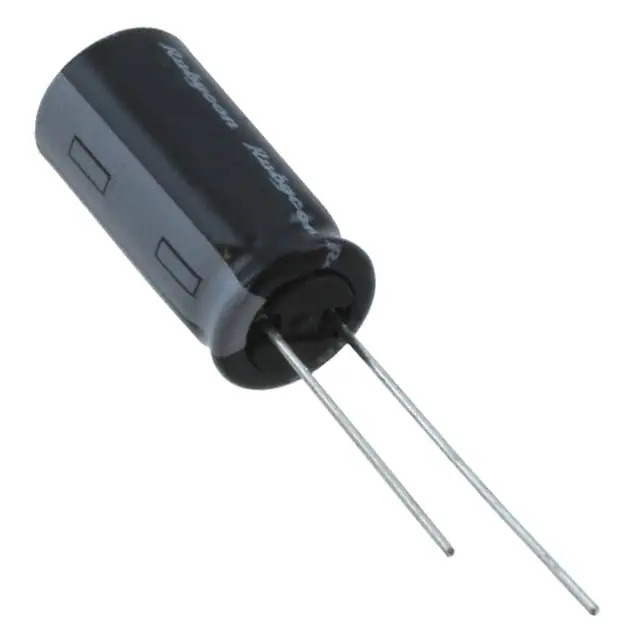

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 600 mA @ 120 Hz
Ripple Current @ High Frequency 720 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357606-50PX470MEFC10X20
Ultra Librarian 3D Model Ultra Librarian 50PX470MEFC10X20 CAD Model

Description

The Rubycon 1357606-50PX470MEFC10X20 is an aluminum electrolytic capacitor with a capacitance of 470 µF and a voltage rating of 50 V manufactured by Rubycon.

  • Series: PX
  • Application: General Purpose
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current: 600 mA @ 120 Hz, 720 mA @ 10 kHz
  • Package: Radial, Can
  • Lead Spacing: 0.197"
  • Dimensions: 0.394" diameter, 0.866" height
