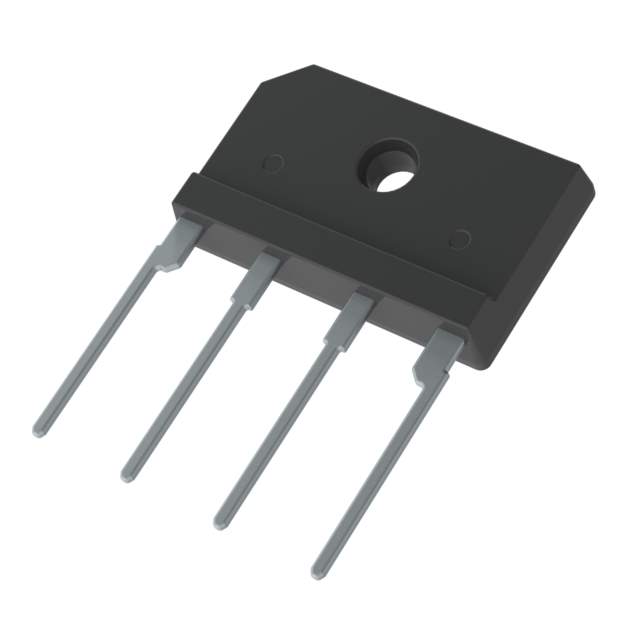

The KBJ2010 is a single-phase bridge rectifier manufactured by Panjit. It is designed to convert alternating current (AC) to direct current (DC) efficiently and reliably. This rectifier is suitable for a wide range of applications requiring a stable DC power supply.
Applications:
- Power supplies for electronic devices: Used in AC-DC power adapters for consumer electronics.
- Battery chargers: Employed in chargers for various types of batteries, including those used in portable devices and automotive applications.
- LED lighting: Powers LED lighting systems, providing a constant DC voltage for consistent illumination.
- Home appliances: Integrates into appliances like refrigerators, washing machines, and microwave ovens for converting AC power.
- Industrial equipment: Used in power supplies for industrial control systems and automation equipment.
Features:
- High surge current capability: Can withstand large surge currents, enhancing its reliability.
- High forward current: Capable of handling a substantial amount of forward current.
- Low forward voltage drop: Minimizes power loss during conduction.
- High reliability: Ensures long-term performance and stability.
- Compact size: Allows for easy integration into various circuit designs.
Benefits:
- Efficient AC-DC conversion: Provides a stable and efficient conversion from AC to DC, optimizing power usage.
- Enhanced device performance: Ensures consistent and reliable power supply, improving the overall performance of connected devices.
- Long-term reliability: Designed for long-lasting operation, reducing the need for frequent replacements.
- Surge protection: Protects connected devices from voltage spikes and surges.
- Versatile applications: Suitable for a wide range of applications, making it a versatile component for various projects.
Additional Details:
The KBJ2010 has a maximum repetitive peak reverse voltage of 1000V and a maximum average forward rectified current of 2.0A. Its operating temperature ranges typically from -55°C to +150°C. The package type is KBJ, which is designed for easy mounting on PCBs. The forward voltage drop is approximately 1.0V at 1.0A, ensuring minimal power loss during operation. It complies with industry standards for safety and performance.
