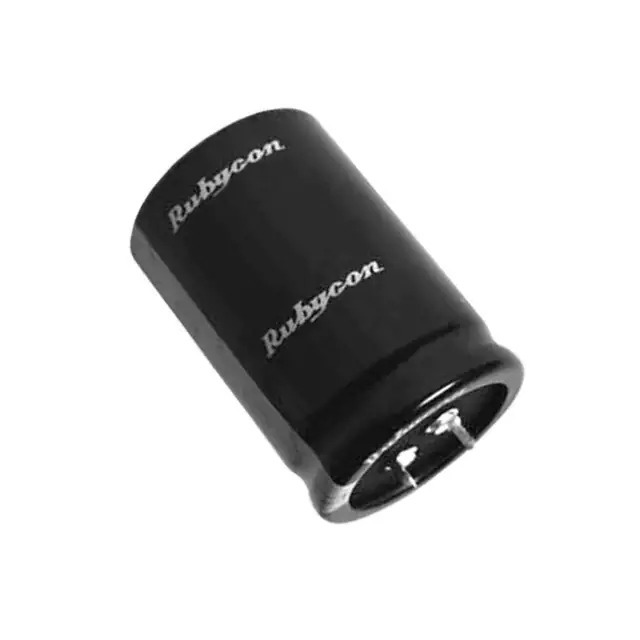

450MXK220MEFCSN30X25

Name: 450MXK220MEFCSN30X25
Brand: Rubycon
SKU: 1360761
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	450MXK220MEFCSN30X25
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 450V SNAP / 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	MXK
Package	Tray
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.29 A @ 120 Hz
Ripple Current @ High Frequency	1.806 A @ 10 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360761-450MXK220MEFCSN30X25
Ultra Librarian 3D Model	Ultra Librarian 450MXK220MEFCSN30X25 CAD Model

Description

The Rubycon MXK series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

Capacitance: 220 µF
Voltage - Rated: 450 V
Operating Temperature: -25°C to 105°C
Package / Case: Radial, Can - Snap-In
Mounting Type: Through Hole
Lifetime @ Temp.: 3000 Hrs @ 105°C
Lead Spacing: 0.394" (10.00mm)
Size / Dimension: 1.181" Dia (30.00mm)
