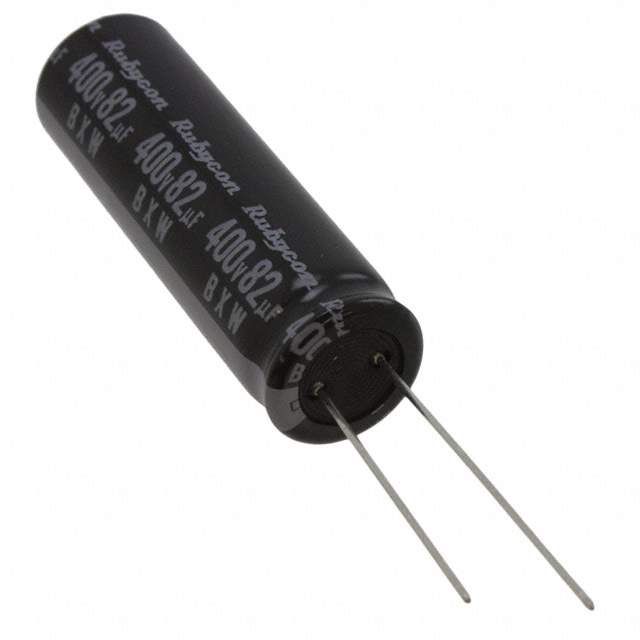

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Product Status Obsolete
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 540 mA @ 120 Hz
Ripple Current @ High Frequency 1.35 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.654" (42.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 450BXW56MEFCEFR12.5X40,450BXW56MEFC125X40,1189-1362
Standard Package 500
Win Source Part Number 999962-450BXW56MEFC12.5X40
Ultra Librarian 3D Model Ultra Librarian 450BXW56MEFC12.5X40 CAD Model

Description

The Rubycon 999962-450BXW56MEFC12.5X40 is a bulk packaged aluminum electrolytic capacitor with a capacitance of 56 μF and a voltage rating of 450 V.

  • Capacitance: 56 μF
  • Voltage Rating: 450 V
  • Series: BXW
  • Mounting Type: Through-hole
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • ESR: Not specified
  • Polarized: Yes
  • Ripple Current: 540 mA @ 120 Hz and 1.35 A @ 100 kHz
  • Lifetime: 12,000 hours @ 105°C
  • Dimensions: 0.492" Dia (12.50mm) and 1.654" (42.00mm) in height when seated
