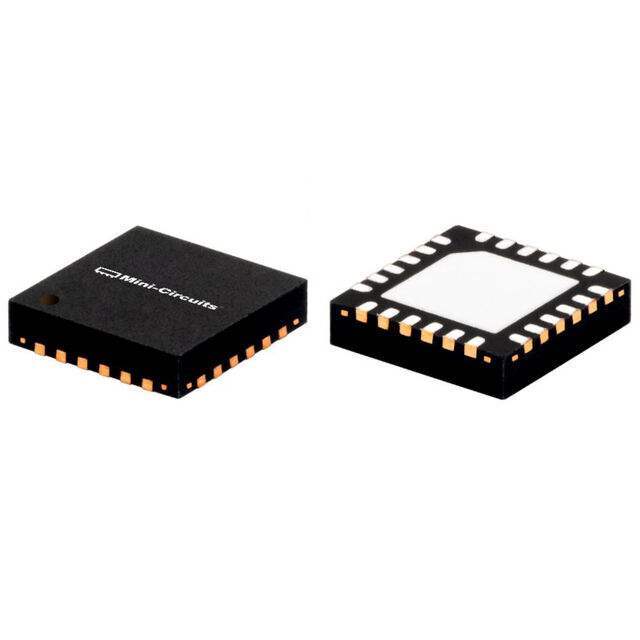

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Active
Frequency 10MHz ~ 26.5GHz
P1dB 19.9dBm
Gain 17.9dB
Noise Figure 9.2dB
RF Type 5G, Radar
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 85mA
Test Frequency 10MHz
Grade -
Mounting Type Surface Mount
Package / Case 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Ultra Librarian 3D Model Ultra Librarian LVA-273PN+ CAD Model

Description

RF Amplifier IC 5G, Radar 10MHz ~ 26.5GHz 24-QFN (4x4)
