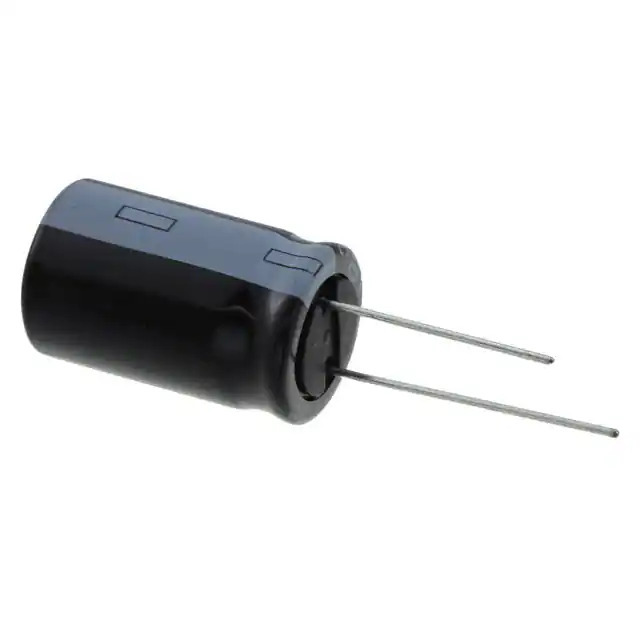

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXC
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357624-400BXC22MEFC12.5X20
Ultra Librarian 3D Model Ultra Librarian 400BXC22MEFC12.5X20 CAD Model

Description

The 400BXC22MEFC12.5X20 is a 22μF, 400V aluminum electrolytic capacitor manufactured by Rubycon.

  • Series: BXC
  • Application: General Purpose
  • Operating Temperature: -25°C to 105°C
  • Capacitance: 22μF
  • Voltage: 400V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.492" (12.50mm) Diameter
  • Height: 0.866" (22.00mm)
  • Mounting Type: Through Hole
  • Polarization: Polarized
  • Package: Radial, Can
  • Lifetime: 12,000 Hours @ 105°C
