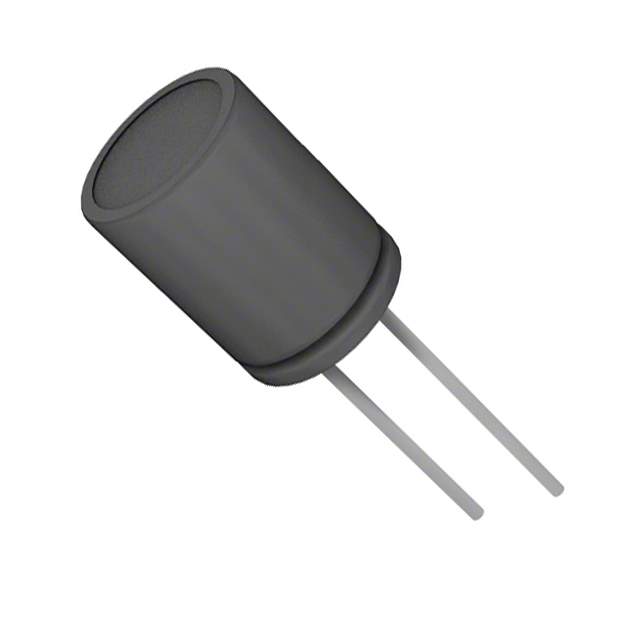

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLK
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 765 mA @ 120 Hz
Ripple Current @ High Frequency 2.55 A @ 100 kHz
Impedance 38 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1069711-35ZLK330M10X16
Ultra Librarian 3D Model Ultra Librarian 35ZLK330M10X16 CAD Model

Description

The ZLK series aluminum electrolytic capacitor is manufactured by Rubycon and is an alternative to EEU-FM1V331, EEU-FM1V331B, UPW1V331MPD1TD, ELXZ350ETD331MJ16S, 25ZLK330M8X16, and ELXY250ETD331MJ16S35ZLK330M 10X16.

  • Capacitance: 330 µF
  • Voltage Rating: 35 V
  • Mounting: Through-Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Seated Height: 0.689" (17.50mm)
  • Impedance: 38 mOhms
  • ESR: -
  • Lifetime: 5000 Hrs @ 105°C
  • Polarization: Polarized
  • Package/Case: Radial, Can Shaped
  • Temperature Range: -40°C to 105°C
