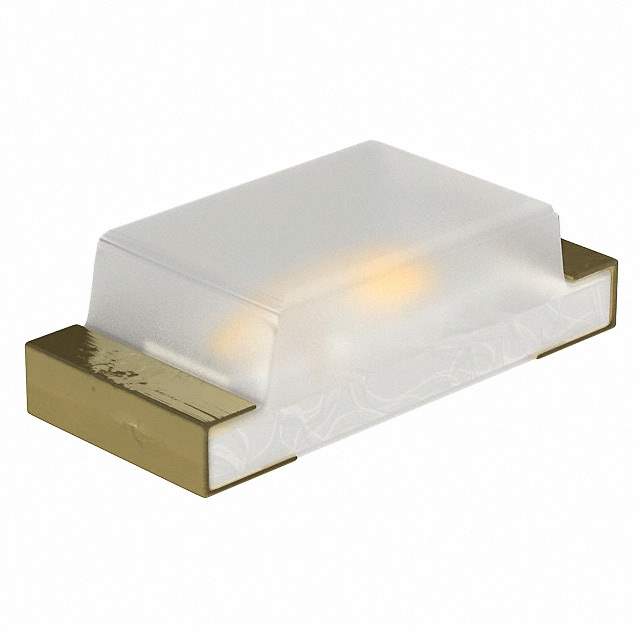

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Green
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 5mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.25V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 555nm
Wavelength - Peak 555nm
Package / Case 0603 (1608 Metric)
Supplier Device Package Chip LED
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.75mm
Base Product Number APT1608
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-2193-2,754-2193-1,Q4471612ABC,754-2193-6,APT1608PGW-ND
Standard Package 2,000
Win Source Part Number 1045610-APT1608PGW
Ultra Librarian 3D Model Ultra Librarian APT1608PGW CAD Model

Description

The Kingbright APT1608PGW is a surface mount chip LED that comes in a 0603 (1608 Metric) package.

  • Viewing Angle: 120 degrees
  • Millicandela Rating: 5mcd
  • Voltage-Forward (Vf): 2.25V
  • Current-Test: 20mA
  • Wavelength-Dominant: 555nm
  • Wavelength-Peak: 555nm
  • Lens Style: Rectangle with a flat top
  • Lens Size: 1.20mm x 0.80mm
  • Height: 0.75mm
  • Transparency: Diffused
  • Lens Color: White
  • Compliance: ROHS3 Compliant
  • ECCN: EAR99
