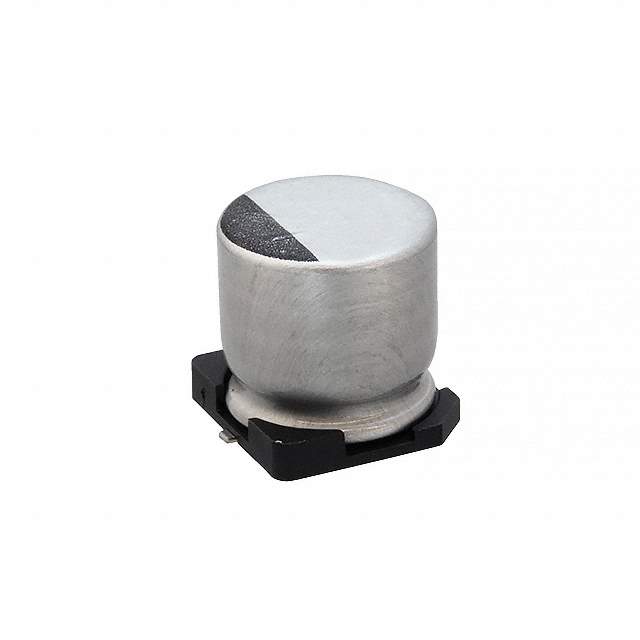

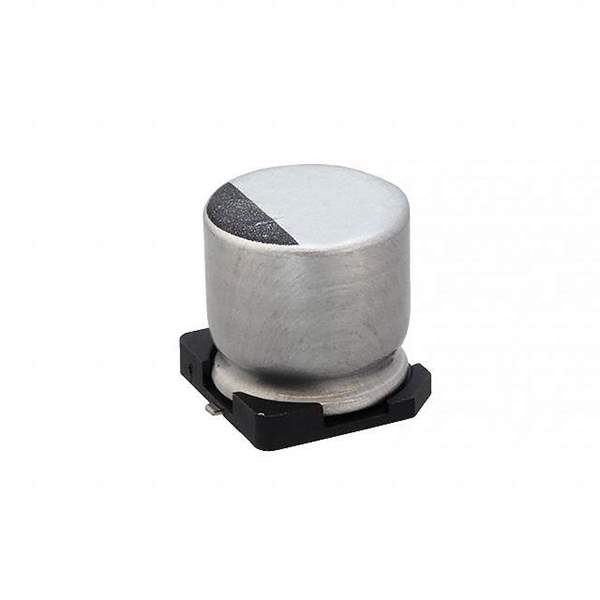

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 570 mA @ 120 Hz
Ripple Current @ High Frequency 684 mA @ 10 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351722-35SEV220M10X10.5
Ultra Librarian 3D Model Ultra Librarian 35SEV220M10X10.5 CAD Model

Description

The 1351722-35SEV220M10X10.5 from Rubycon is an aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 220 µF
  • Voltage Rating: 35 V
  • Mounting Style: Surface Mount
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Height: 0.413" (10.50mm) (Max)
  • Diameter: 0.394" (10.00mm)
  • Tolerance: ±20%
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Package: Radial, Can - SMD
  • ESR: Not Specified
  • Ripple Current (Low Frequency): 570 mA @ 120 Hz
  • Ripple Current (High Frequency): 684 mA @ 10 kHz
